Liftgate Rear Control Switch Connector - C4333

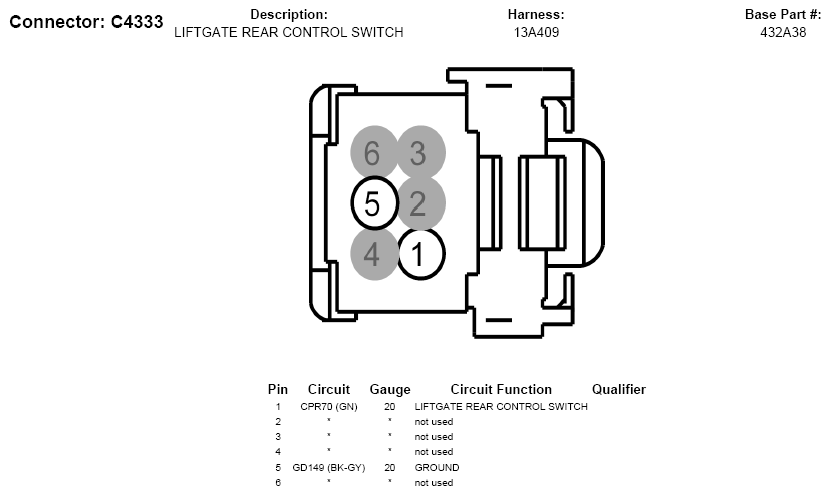

Fig 1: Liftgate Rear Control Switch Connector End View (C4333)
G05746860Courtesy of FORD MOTOR CO.
