Memory Positioning Module: Service and Repair

Driver Seat Module (DSM)









Removal and Installation

NOTE: Prior to the removal of the module, it is necessary to upload the module configuration to a scan tool. This information needs to be downloaded into the new module once installed.

1. NOTE: A new Driver Seat Module (DSM) is delivered in a manufacturing mode with a pre-set DTC of B2477 (Module Configuration Failure). This DTC will clear when the module has been successfully configured during Programmable Module Installation (PMI).

NOTE: This step is necessary only if the DSM is being replaced with a new one.

Upload the module configuration information from the DSM.

2. Remove the driver seat.

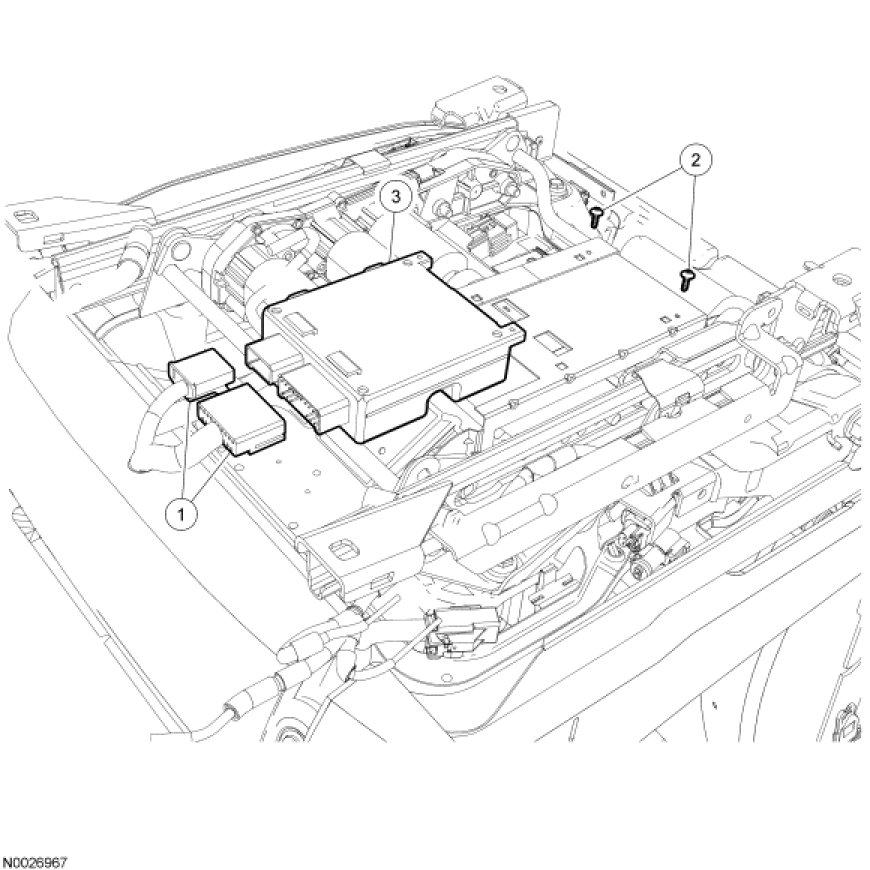

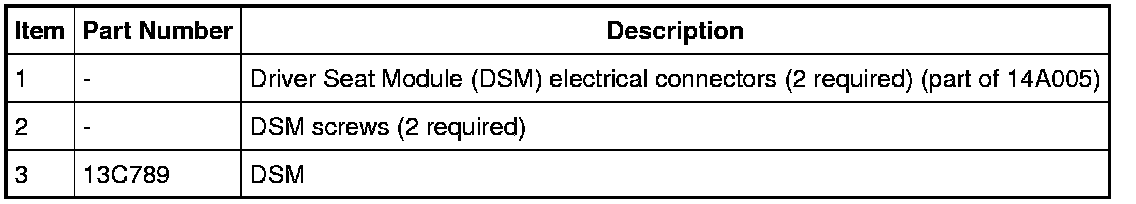

3. Remove the 2 screws.

4. Disconnect the 2 electrical connectors.

5. Remove the DSM from the seat bracket.

6. NOTE: Once the new module is installed, it is necessary to download the module configuration information from the scan tool into the new module.

To install, reverse the removal procedure.
