Typical Diagnostic Reference Values

Typical Diagnostic Reference Values Notes (Part 1):





Typical Diagnostic Reference Values Notes (Part 2):

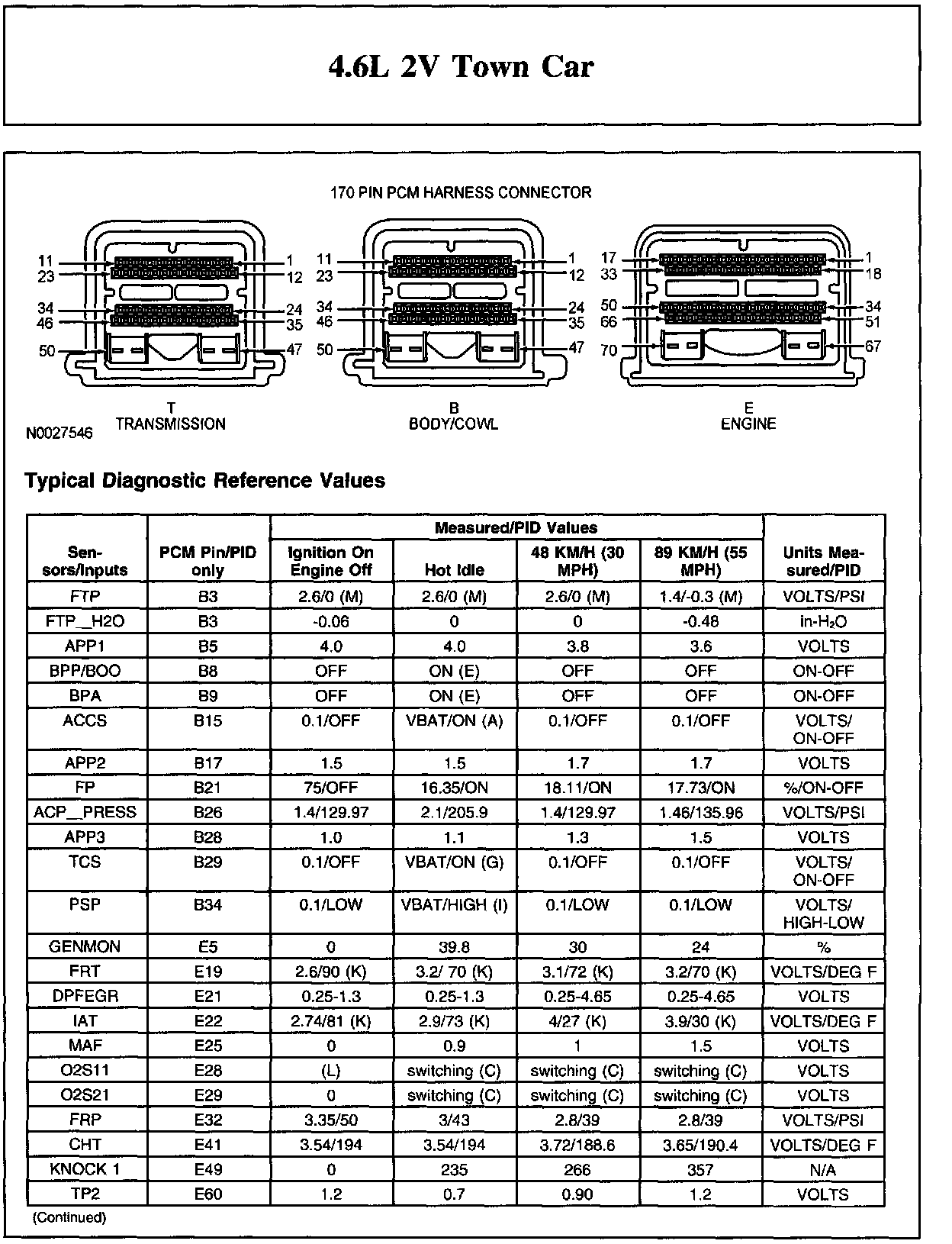

4.6L 2V Town Car (Part 1):

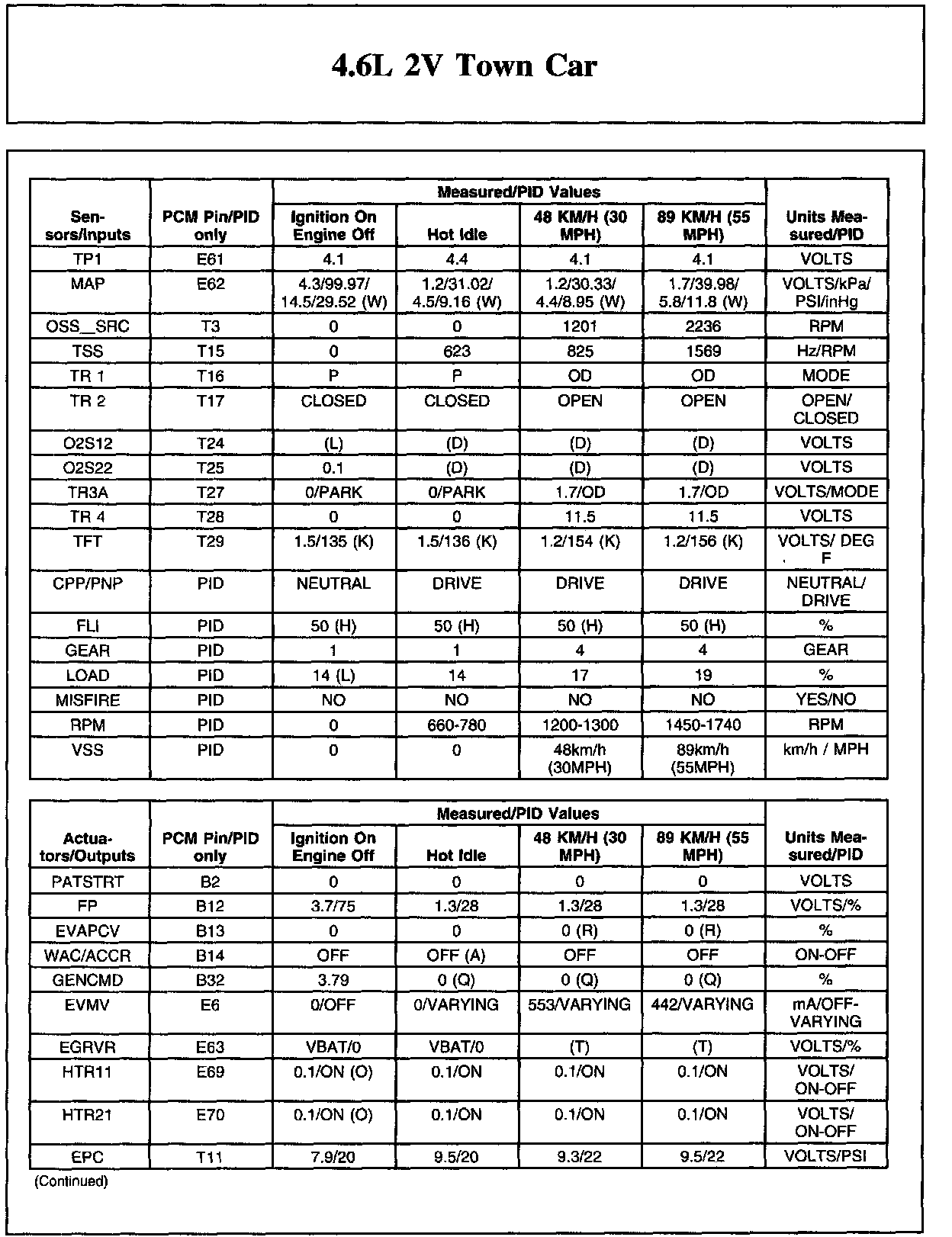

4.6L 2V Town Car (Part 2):

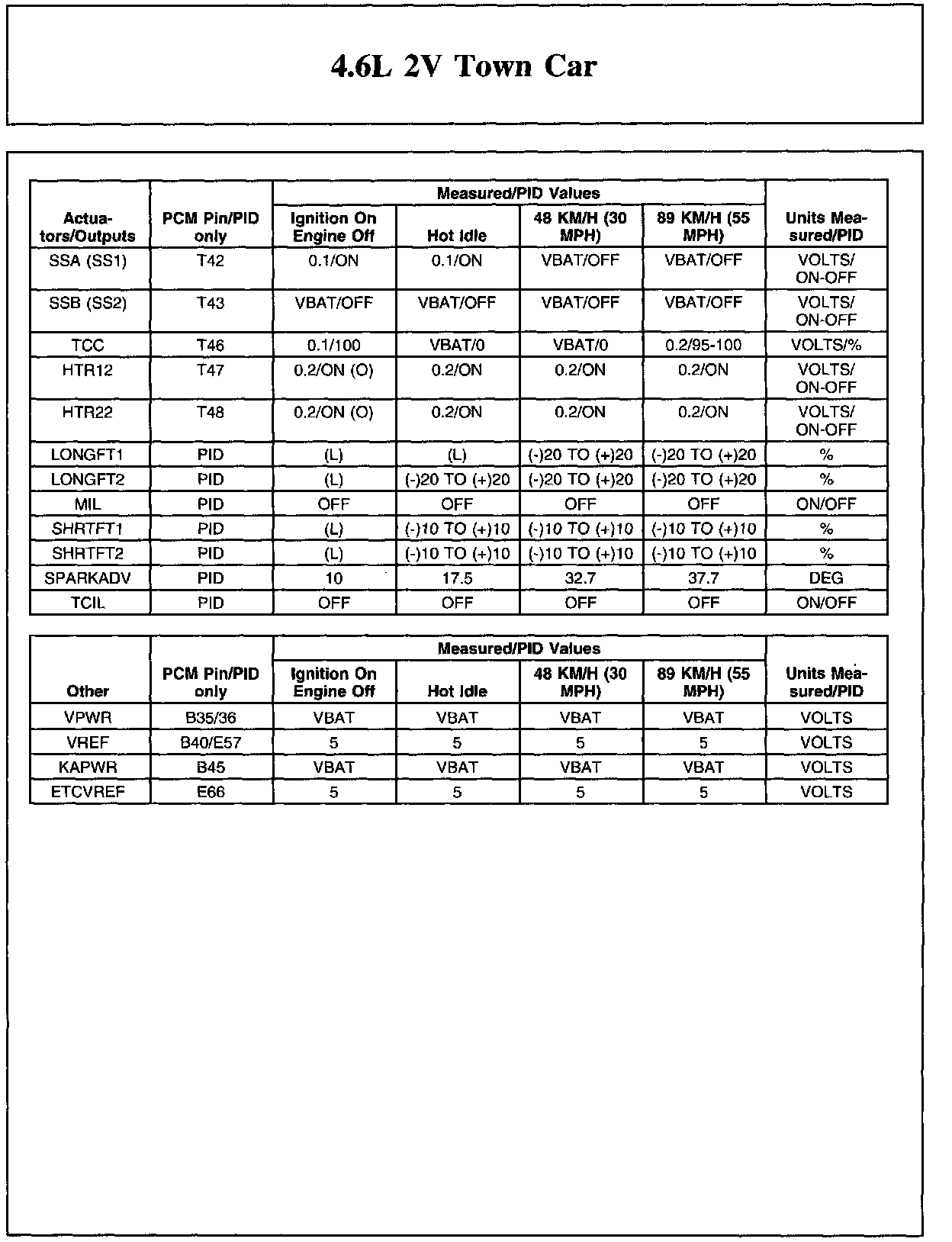

4.6L 2V Town Car (Part 3):
