Mass Air Flow Sensor / Intake Air Temperature Sensor Connector - C128

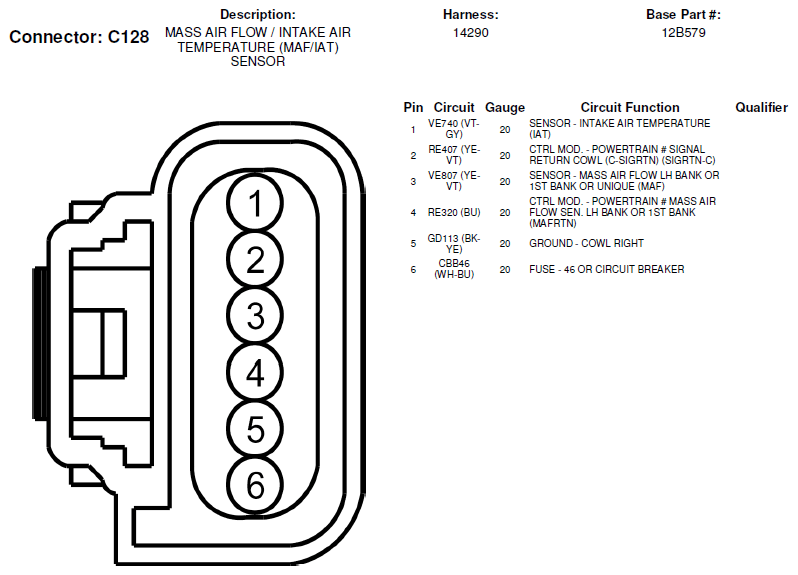

Fig 1: Mass Air Flow Sensor / Intake Air Temperature Sensor Connector End View (C128)
G06374155Courtesy of FORD MOTOR CO.
