Power Steering Control Module Connector End View - C1467B

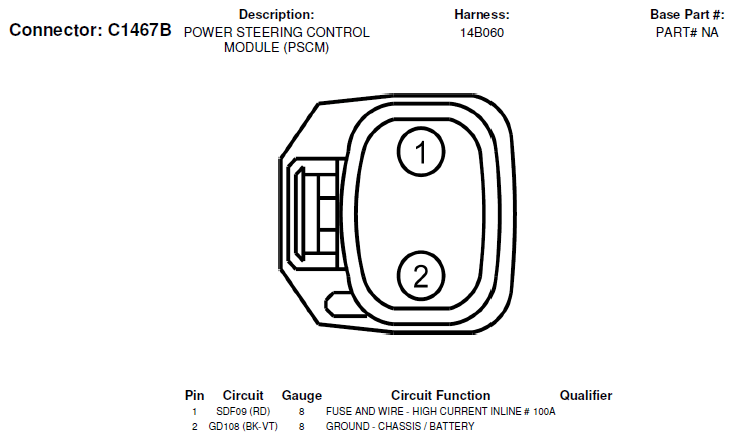

Fig 1: Power Steering Control Module Connector End View (C1467B)
G06374387Courtesy of FORD MOTOR CO.
