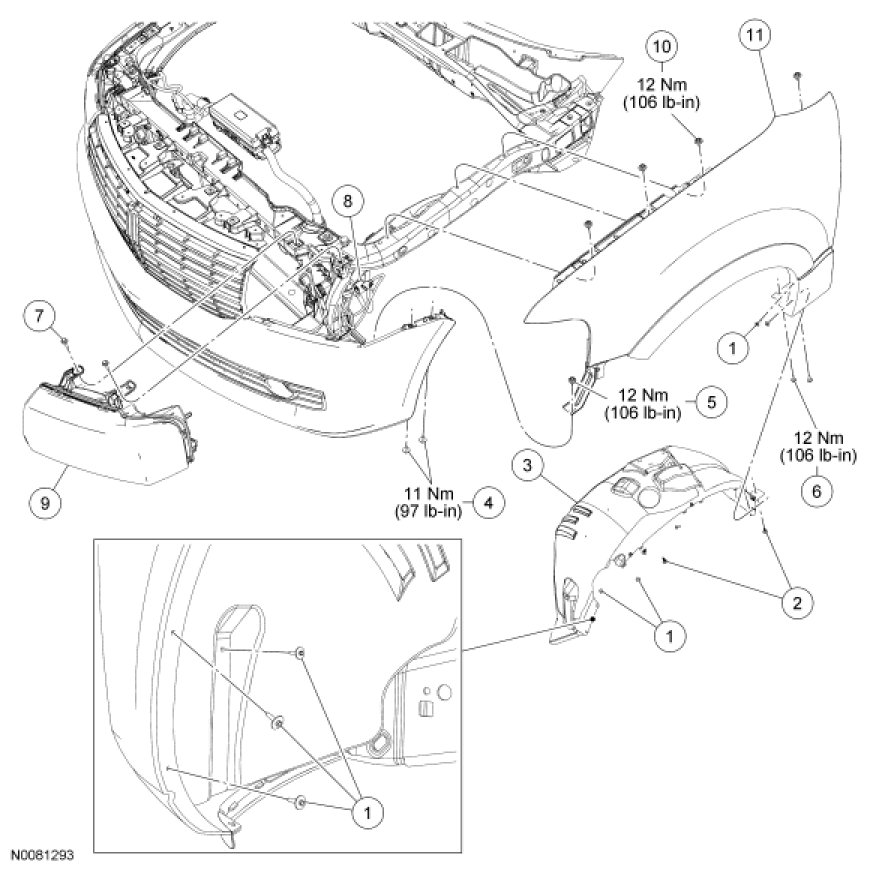

Front End Body Panels - Exploded View
Front End Body Panels - Exploded View
NOTE:
Navigator shown, Expedition similar.
