Removal And Installation: Subwoofer: Notes
WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

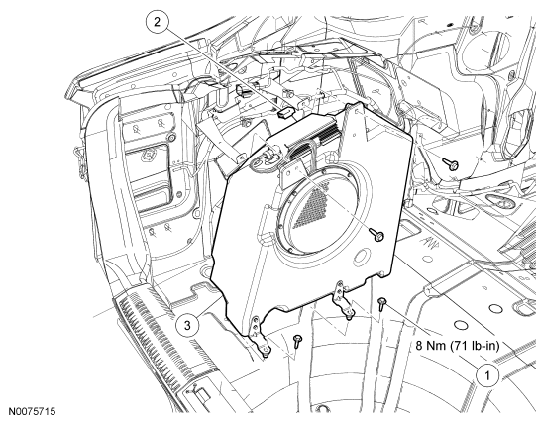

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
W505424-S |
Subwoofer bolts (4 required) |
| 2 |
- |
Subwoofer amplifier electrical connector (part of 14A005) |
| 3 |
18C804 |
Subwoofer |
