Heated Seat Module - Front Seat




Heated Seat Module - Front Seat

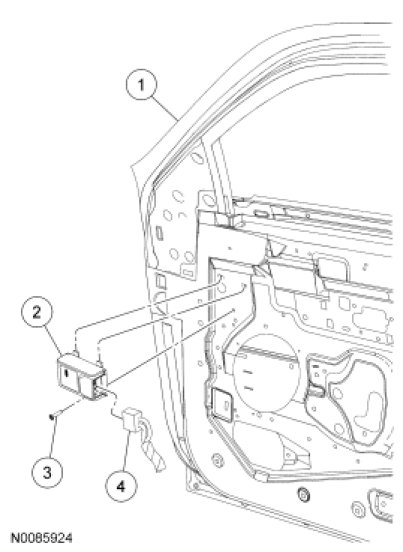

Removal and Installation

1. Remove the RH front door trim panel.

2. Disconnect the heated seat module electrical connector.

3. Remove the heated seat module retainer.

4. Rotate the bottom of the heated seat module upward and remove.

5. To install, reverse the removal procedure.
