Seat - Exploded View, Front




Seat - Exploded View, Front

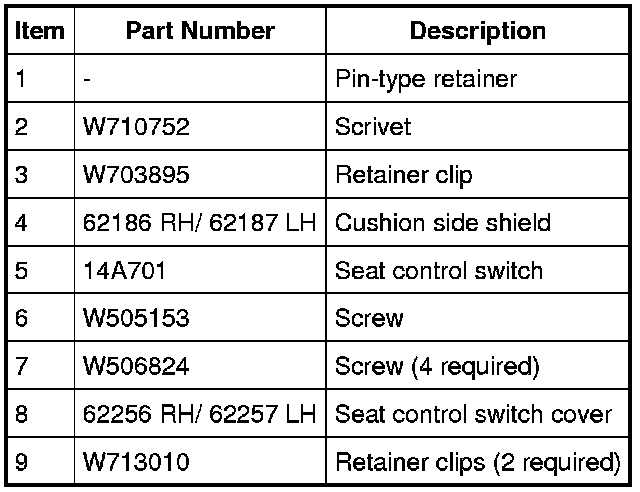

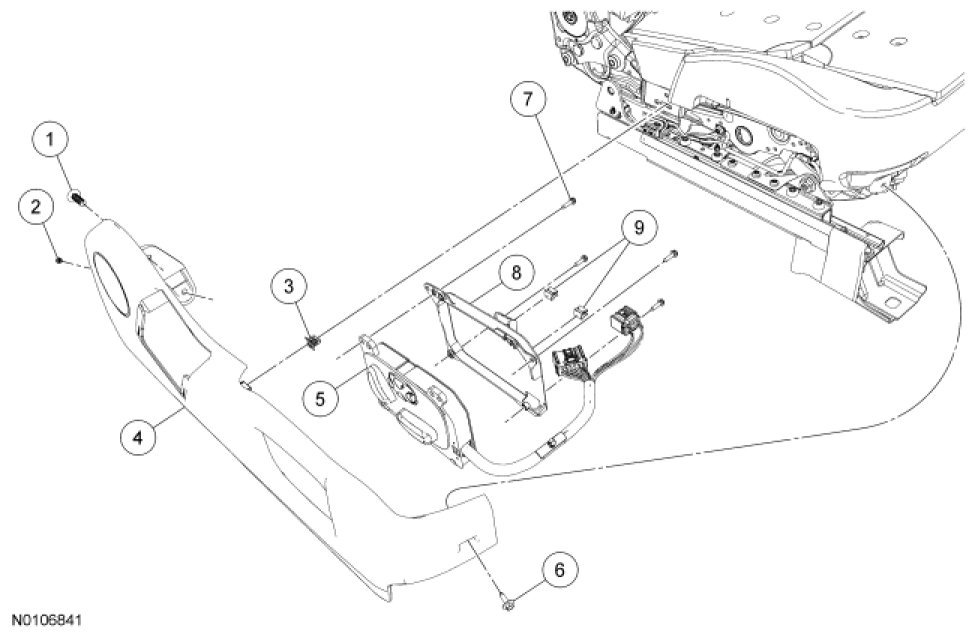

Seat Cushion Side Shield

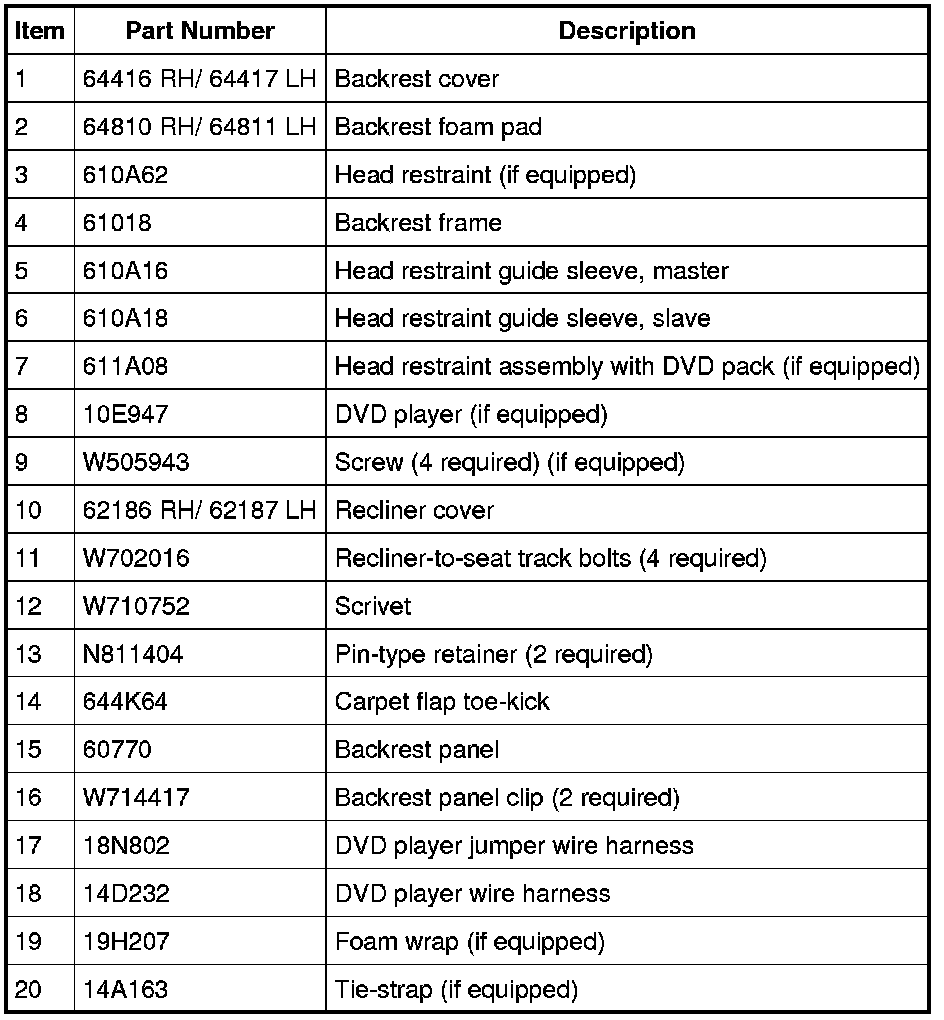

Seat Backrest - Trim Parts

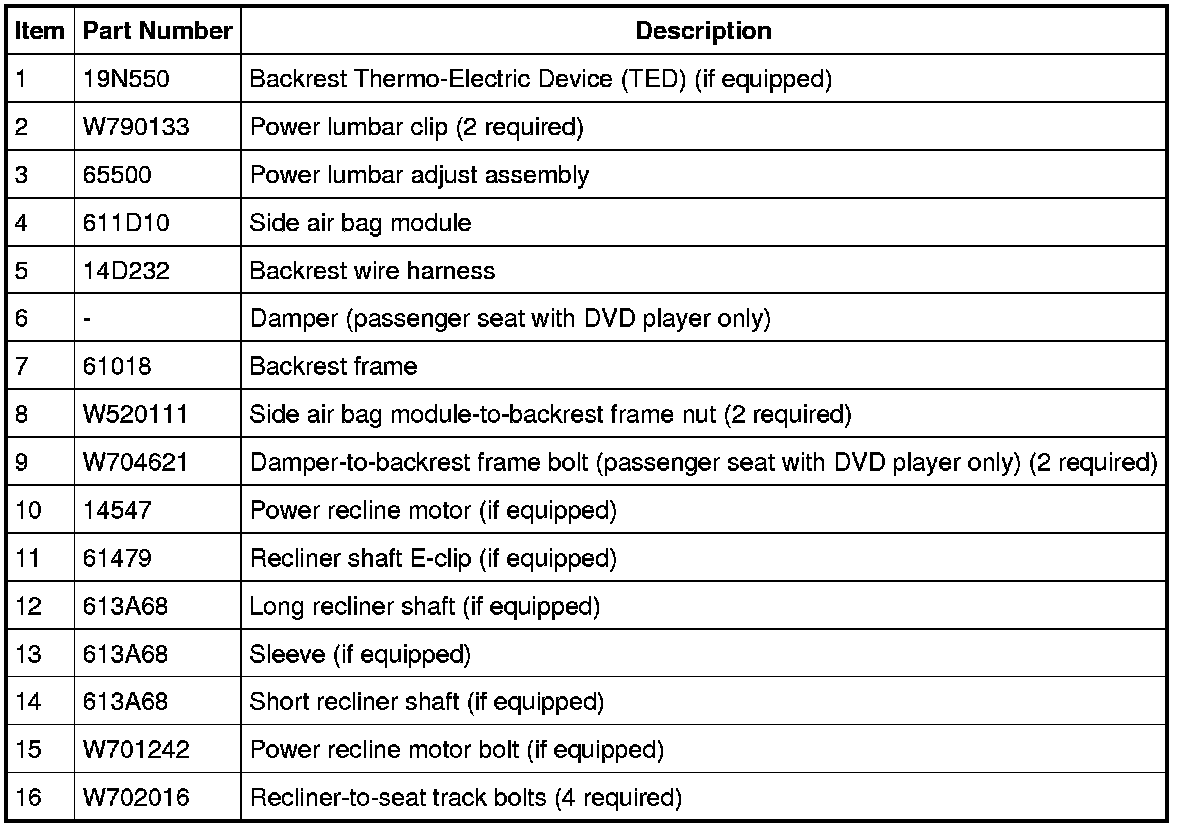

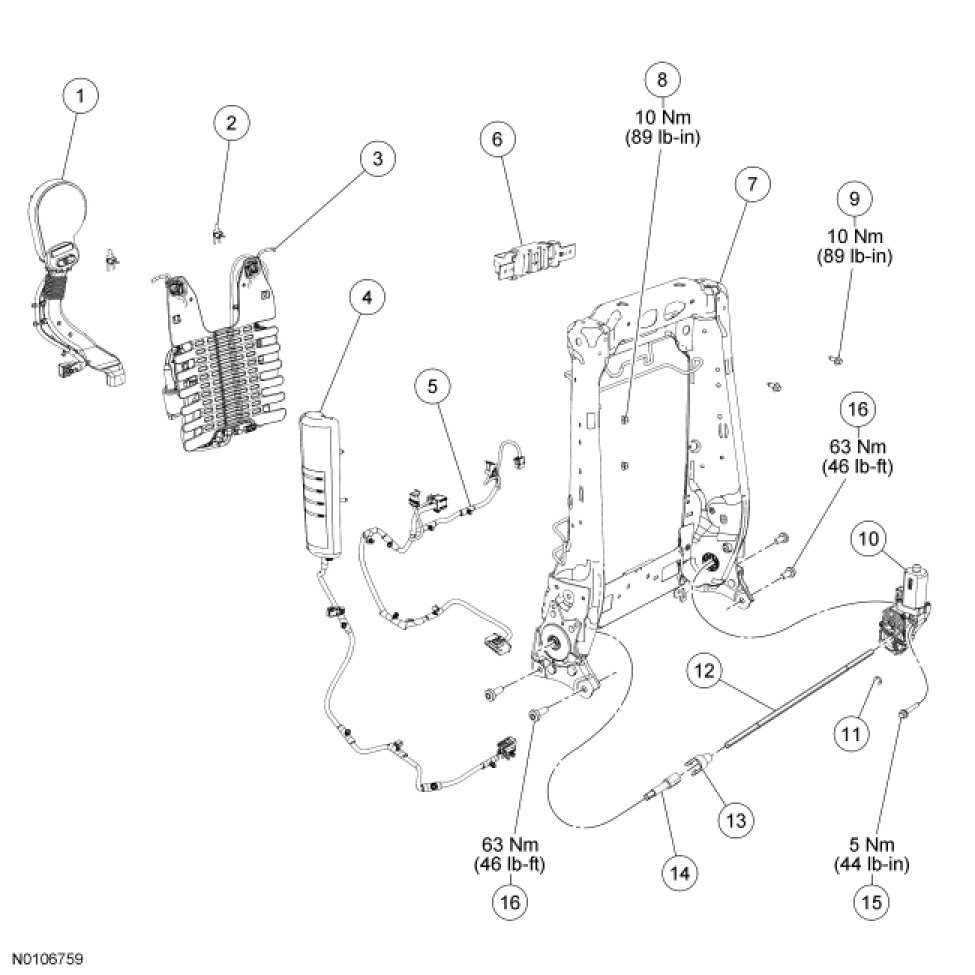

Seat Backrest - Frame Parts

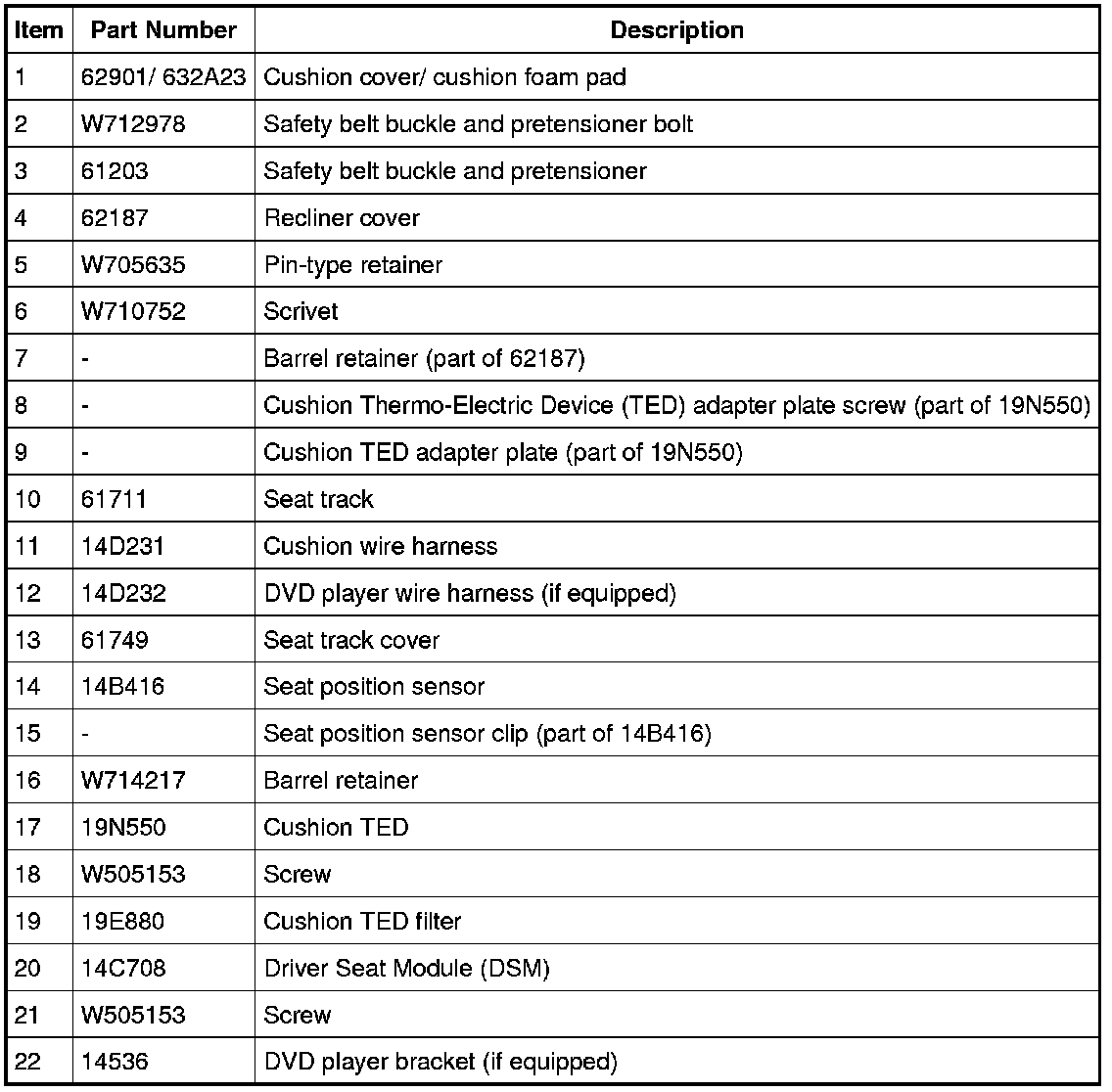

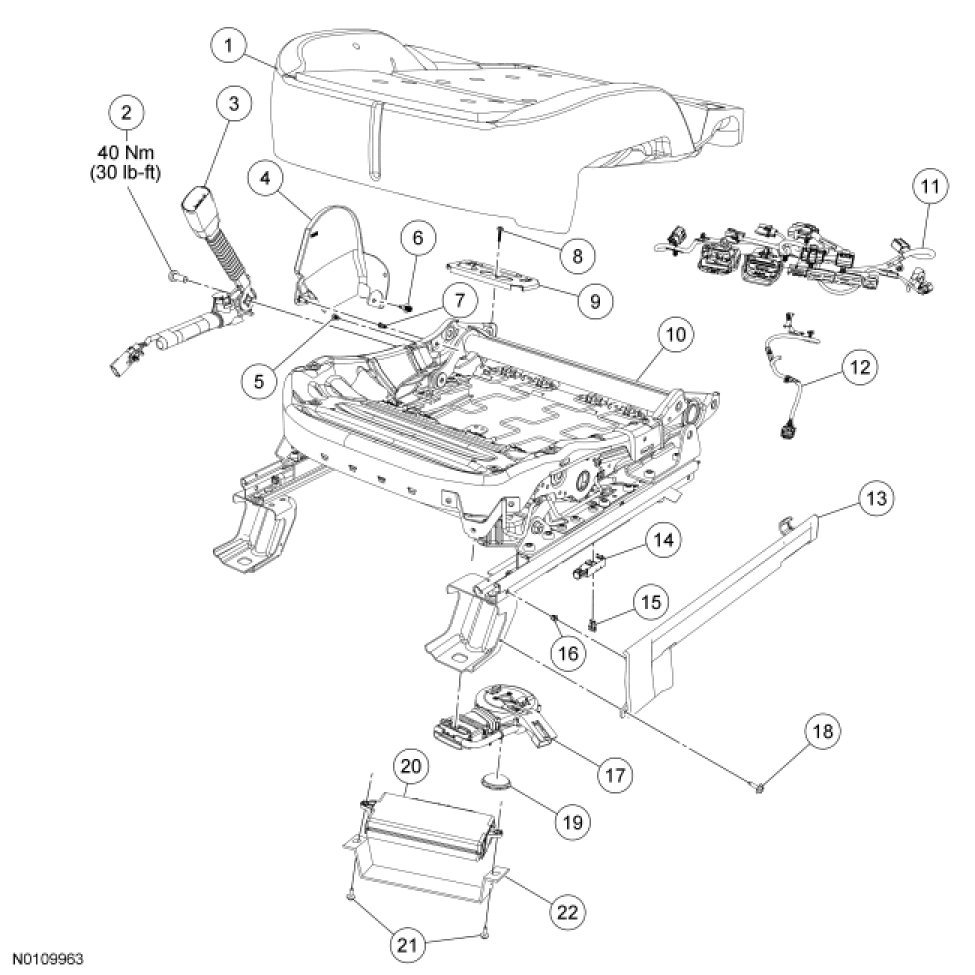

Driver Seat Track

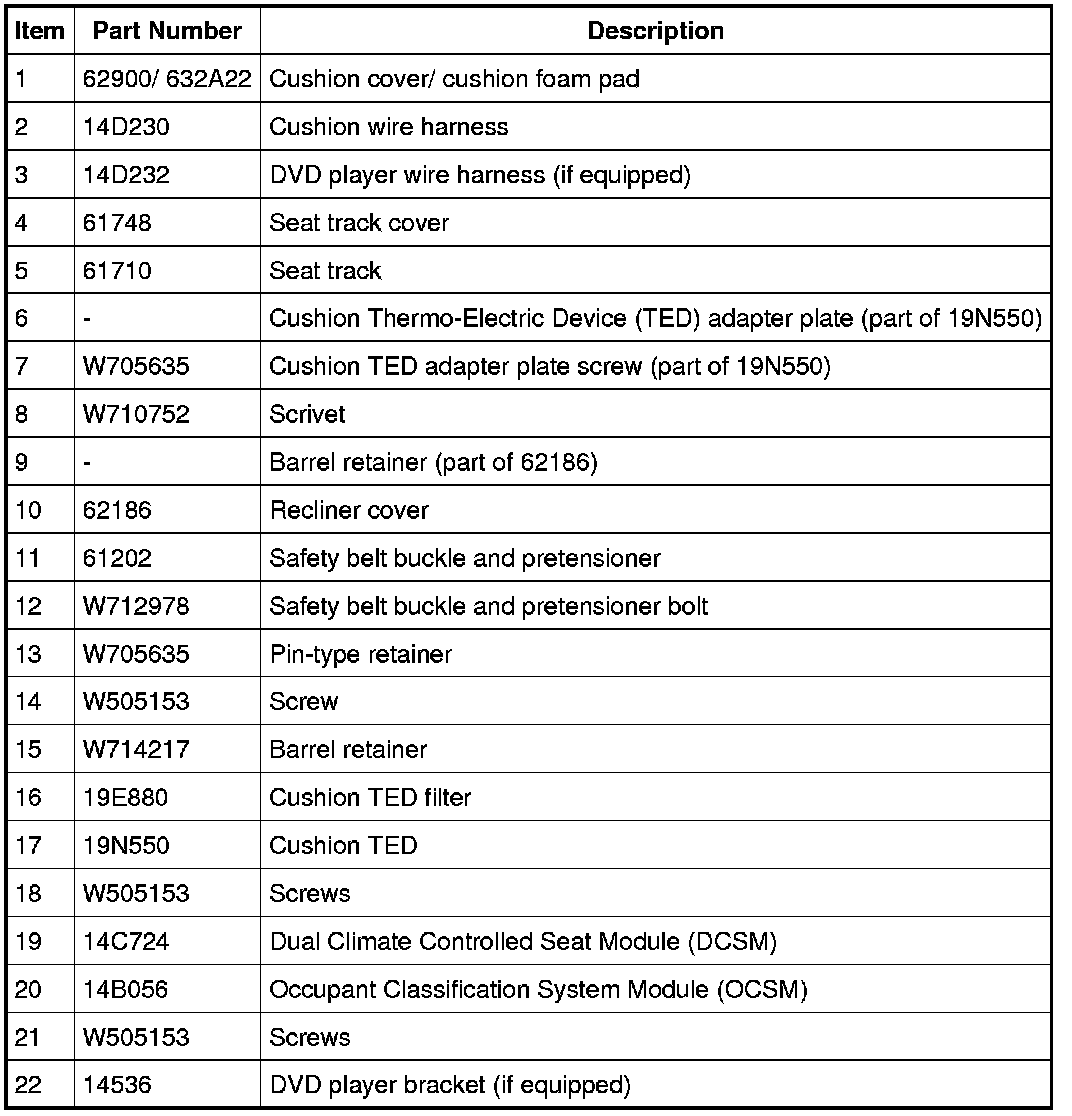

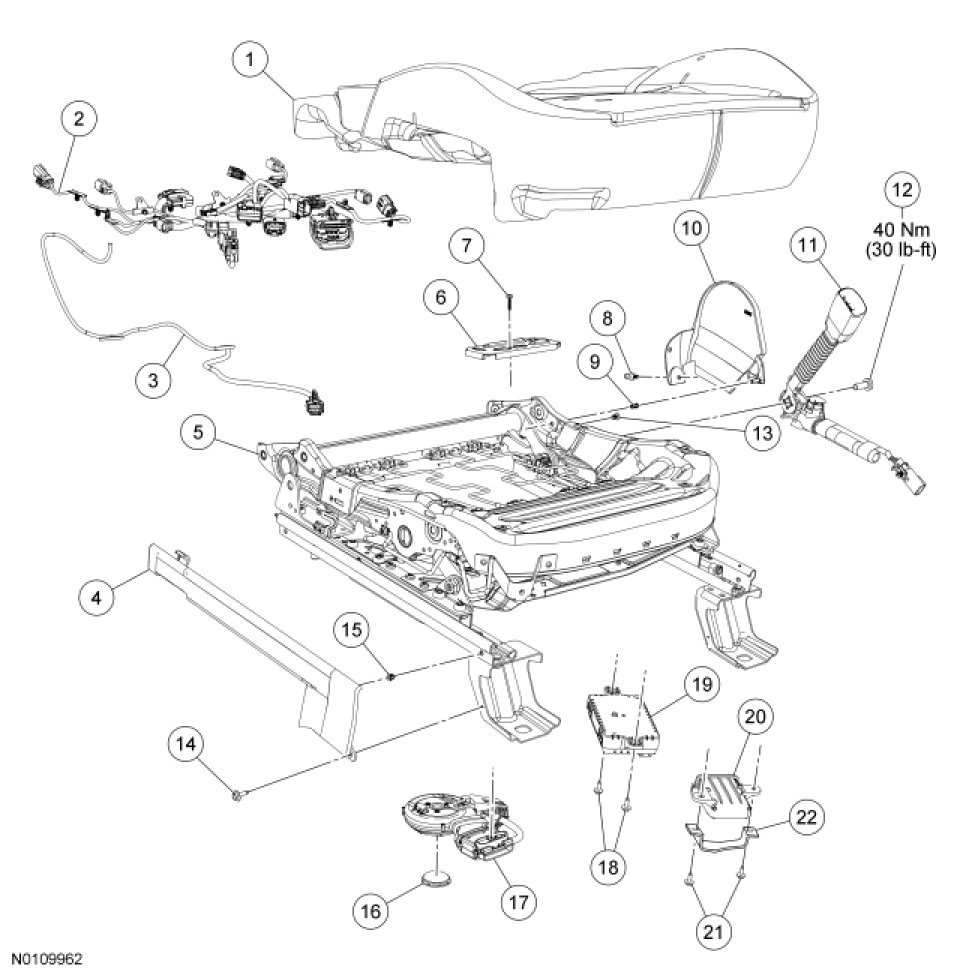

Passenger Seat Track
