Utility Storage Compartment




Instrument Panel - Exploded View

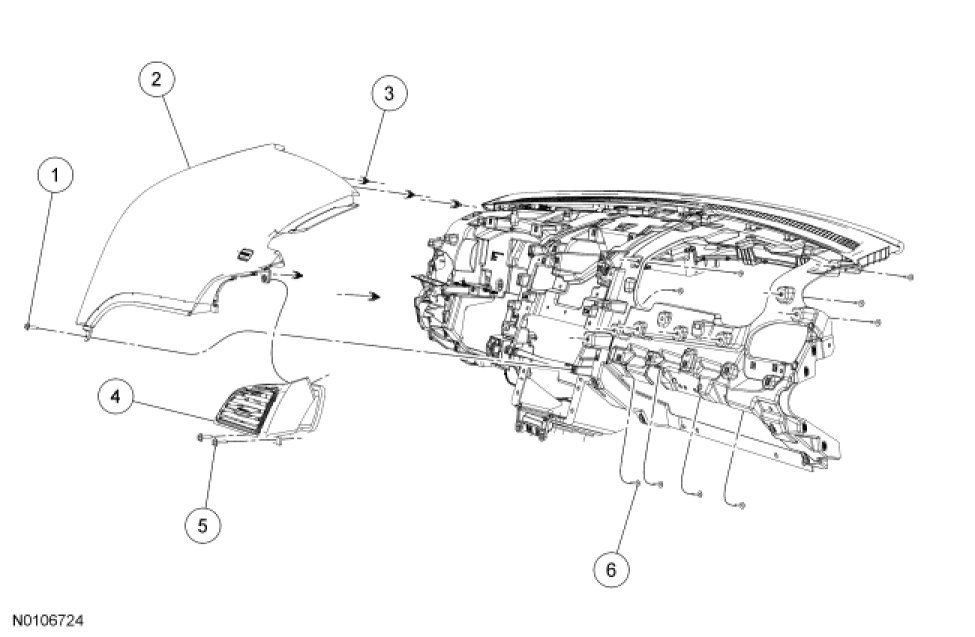

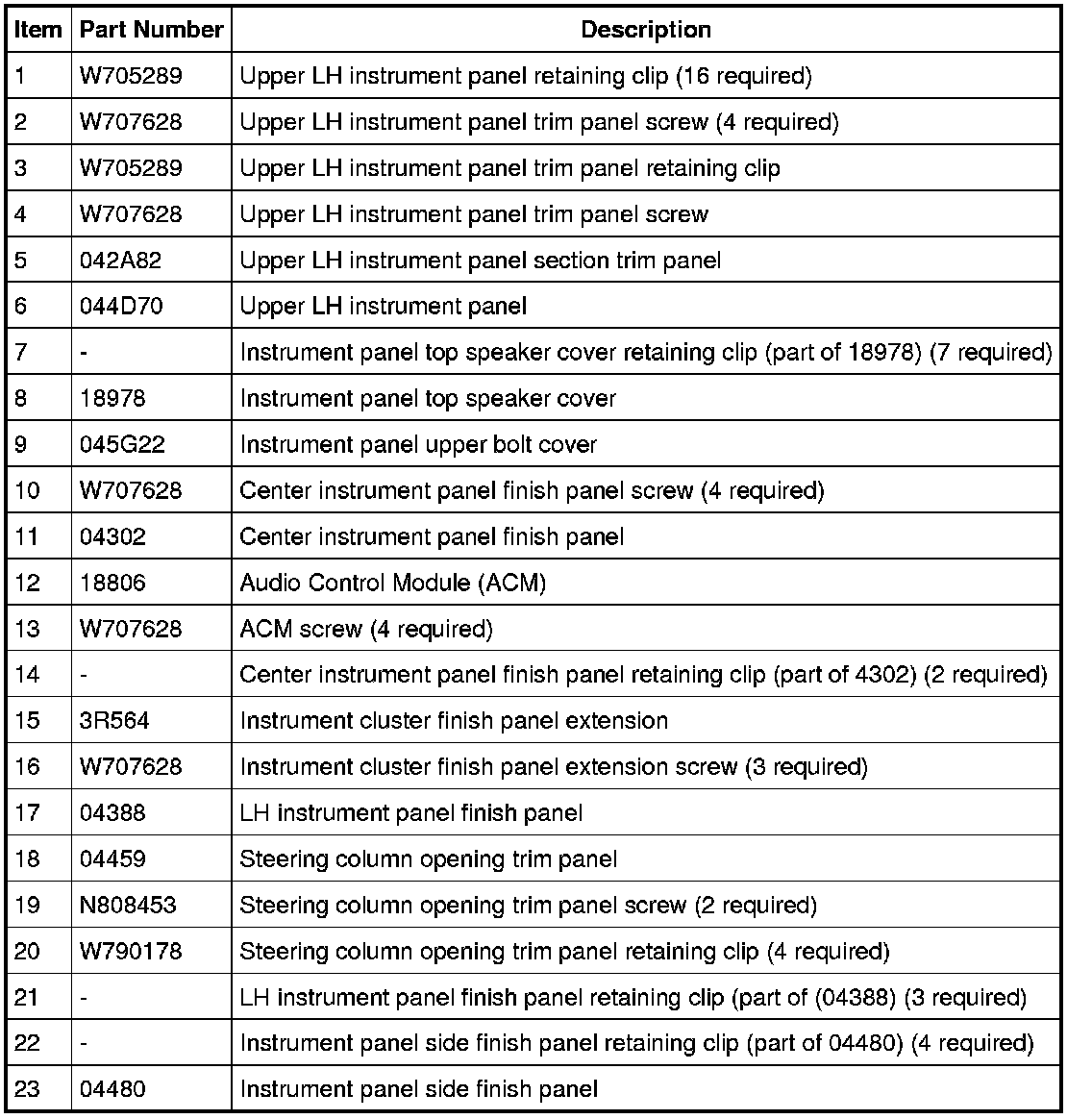

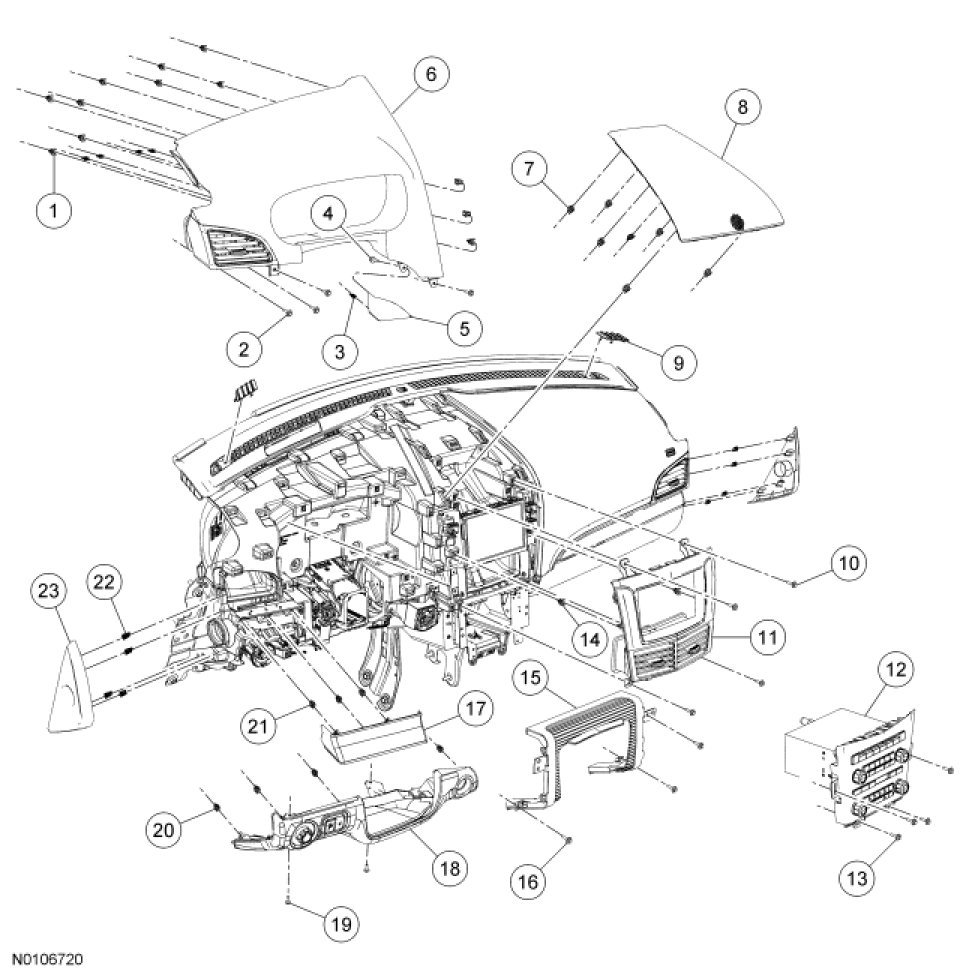

Instrument Panel Finish Panels and Fasteners (1 of 2)

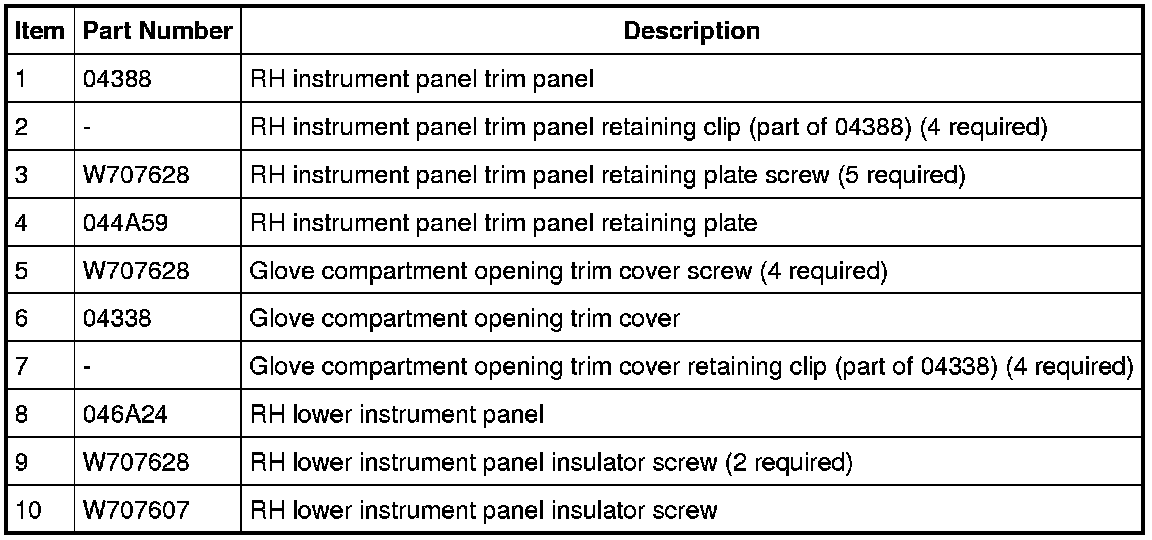

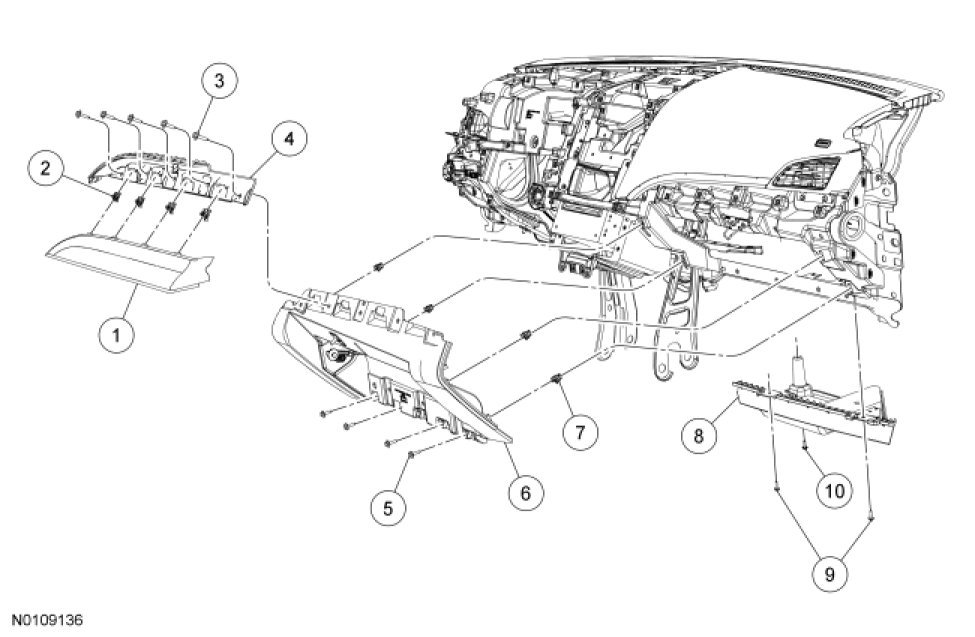

Instrument Panel Finish Panels and Fasteners (2 of 2)

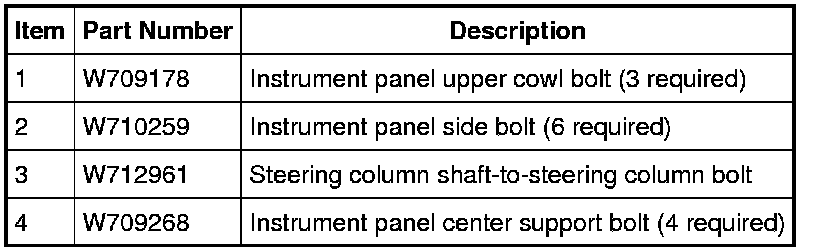

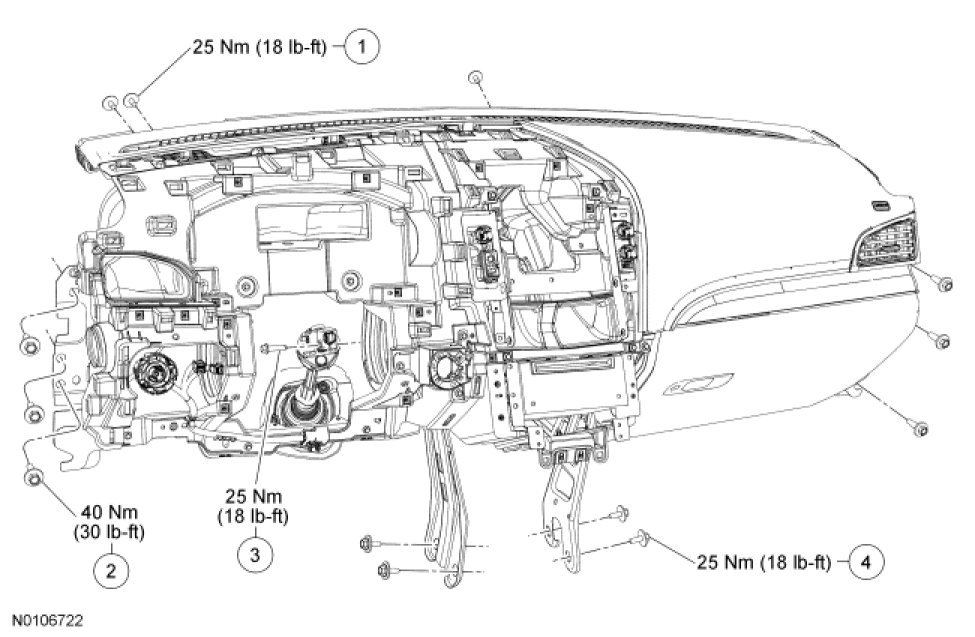

Instrument Panel Bolts









Instrument Panel Fasteners

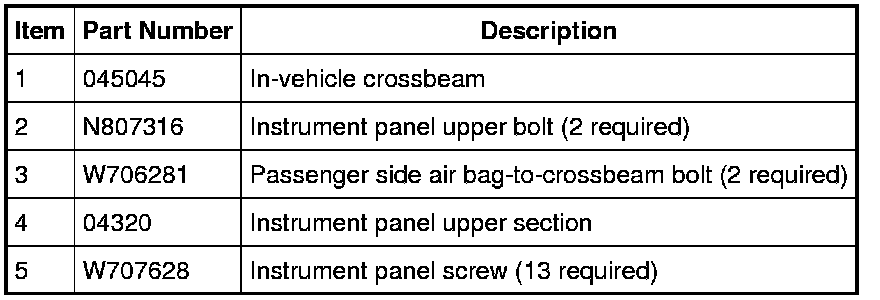

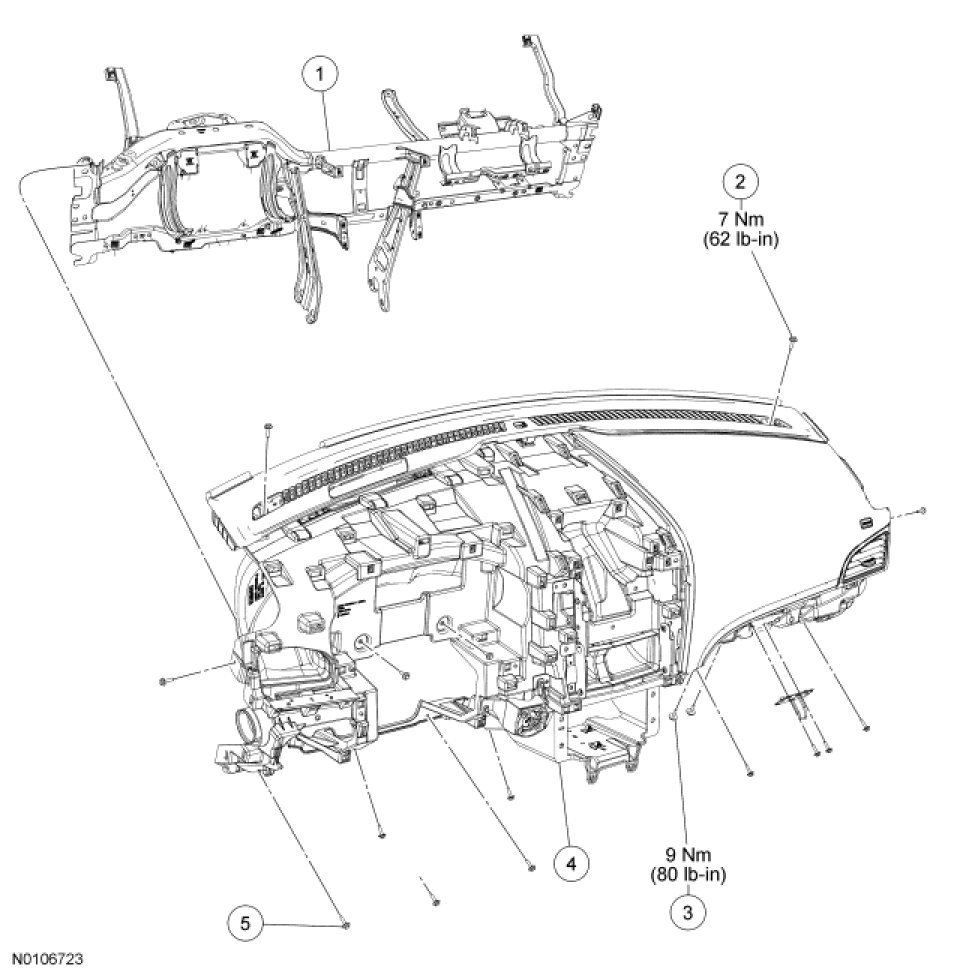

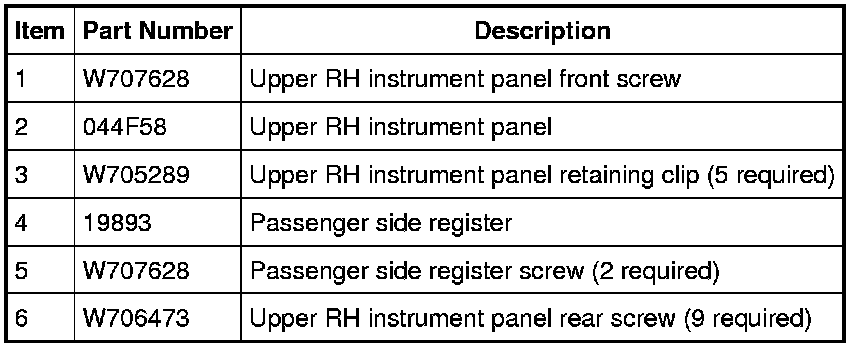

Instrument Panel Upper Section

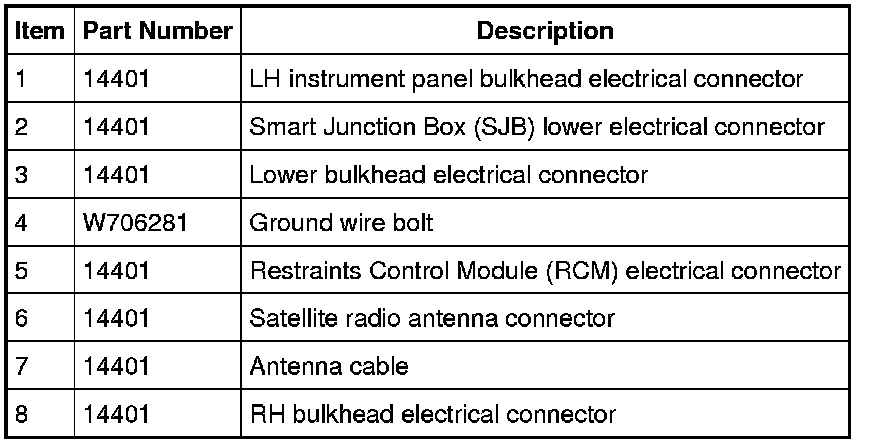

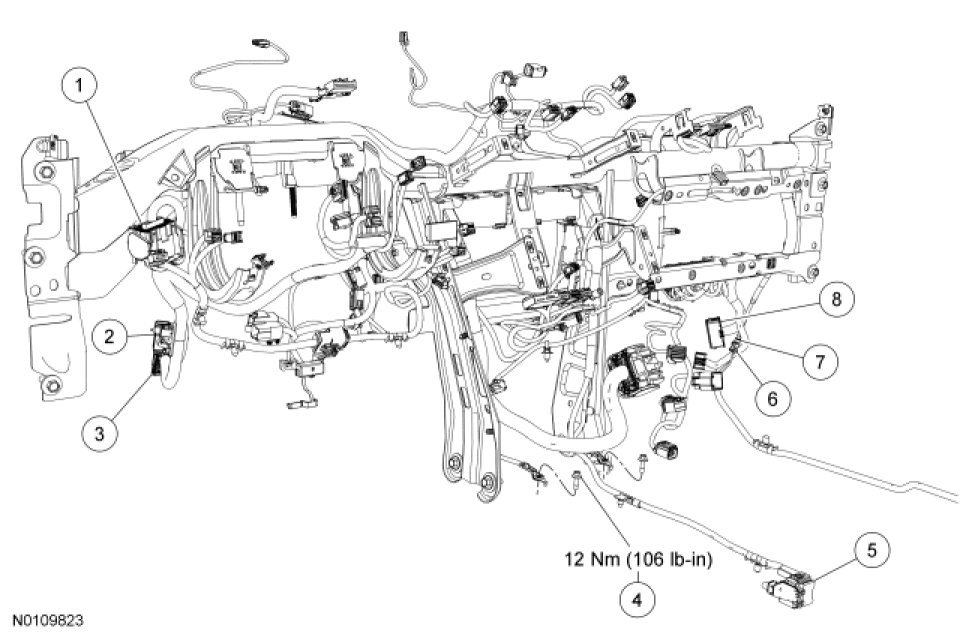

Instrument Panel Electrical Connectors
