Test JB: Secondary Ignition (COP)
PINPOINT TEST JB: SECONDARY IGNITION (COP)

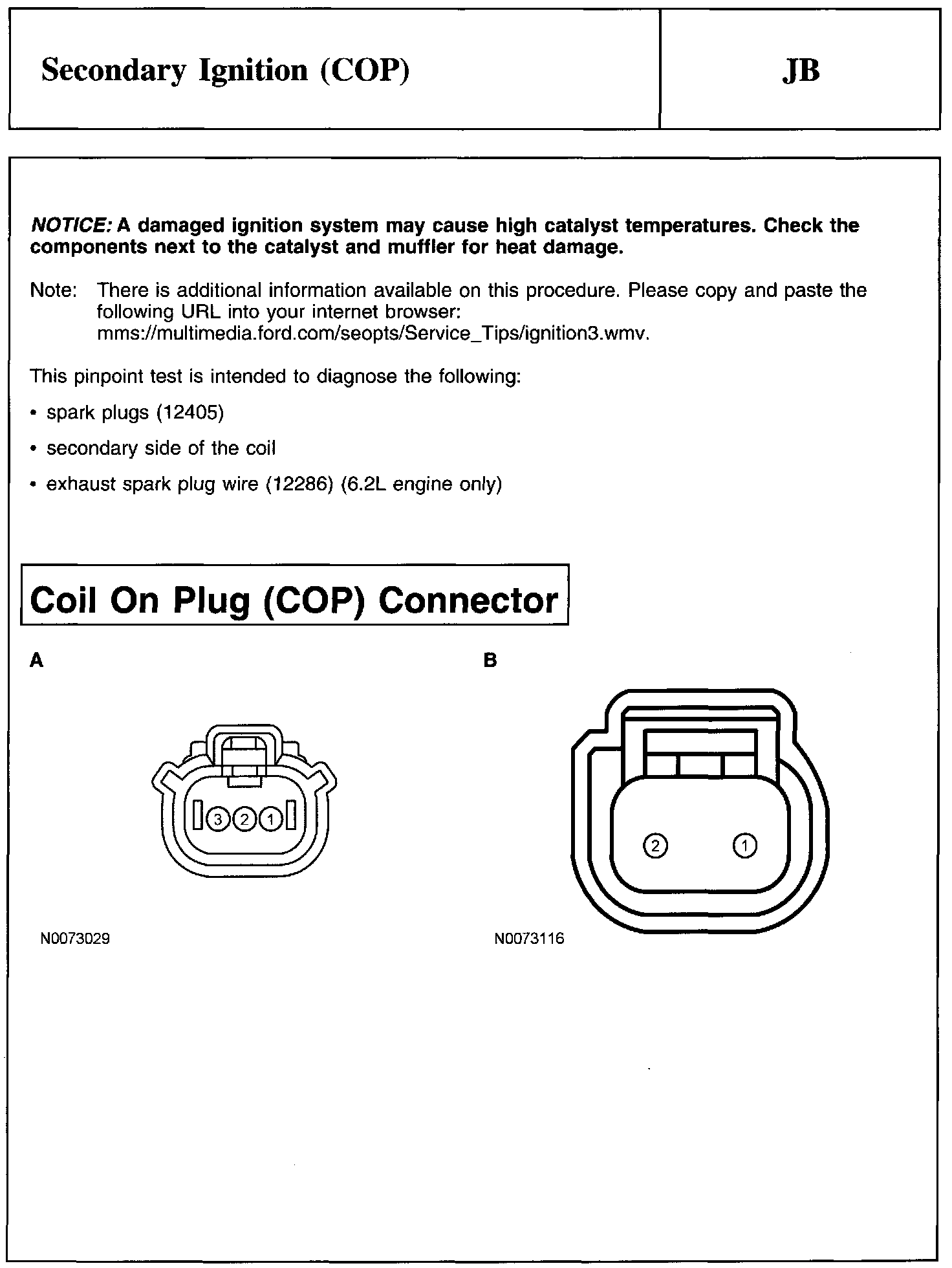

Notice, Note And Coil On Plug (COP) Connector:

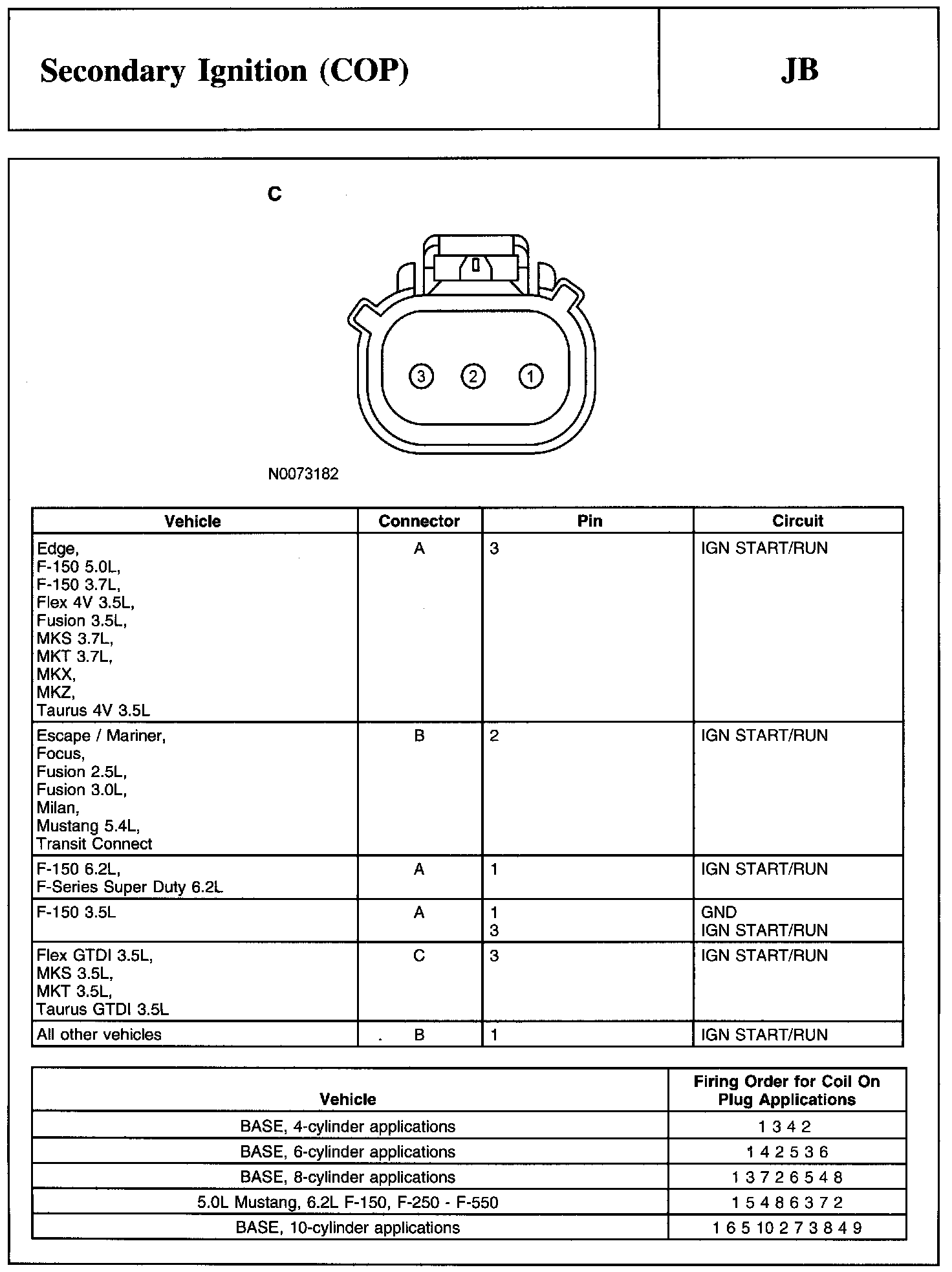

Coil On Plug (COP) Connector:

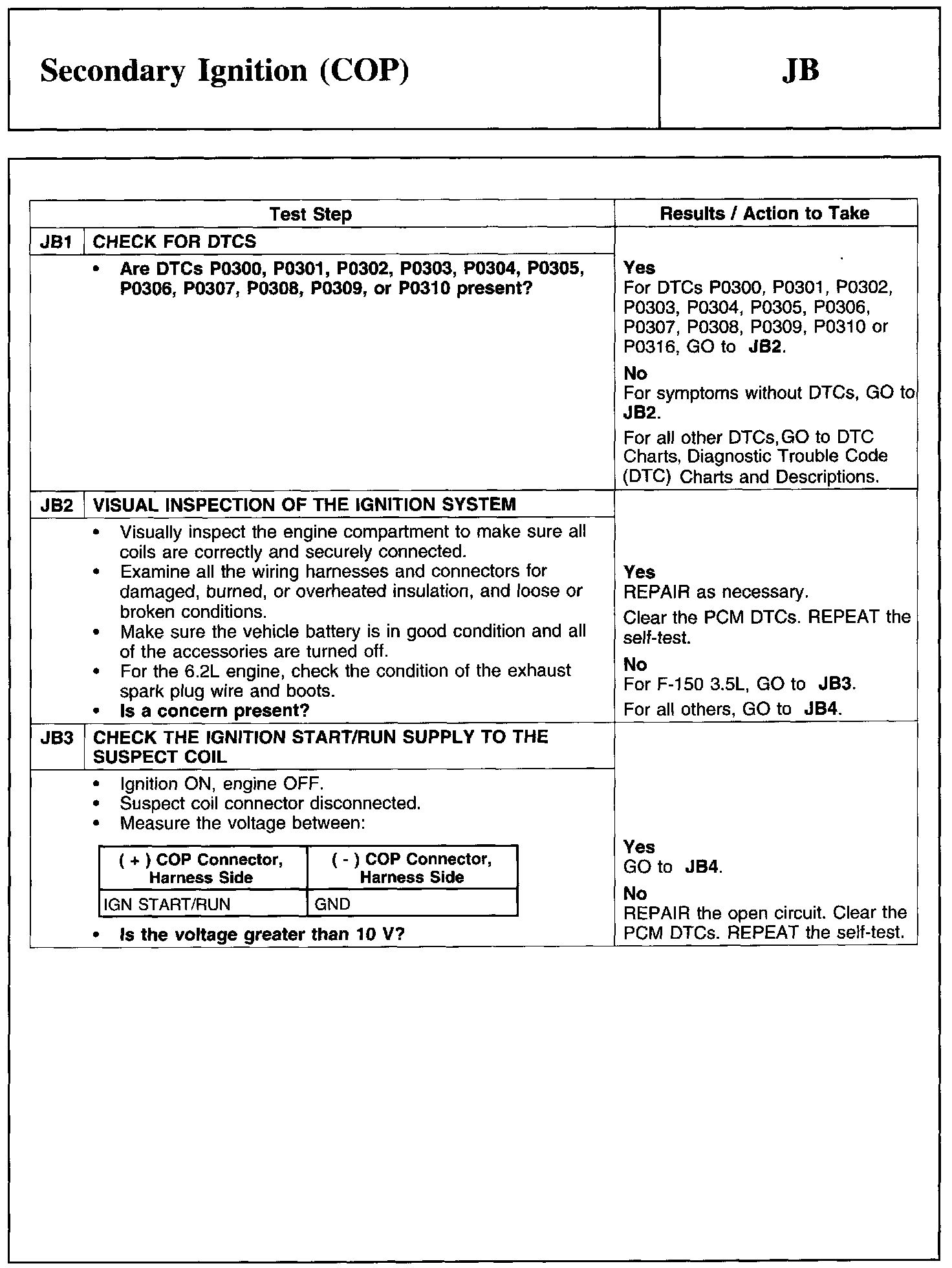

JB1-JB3:

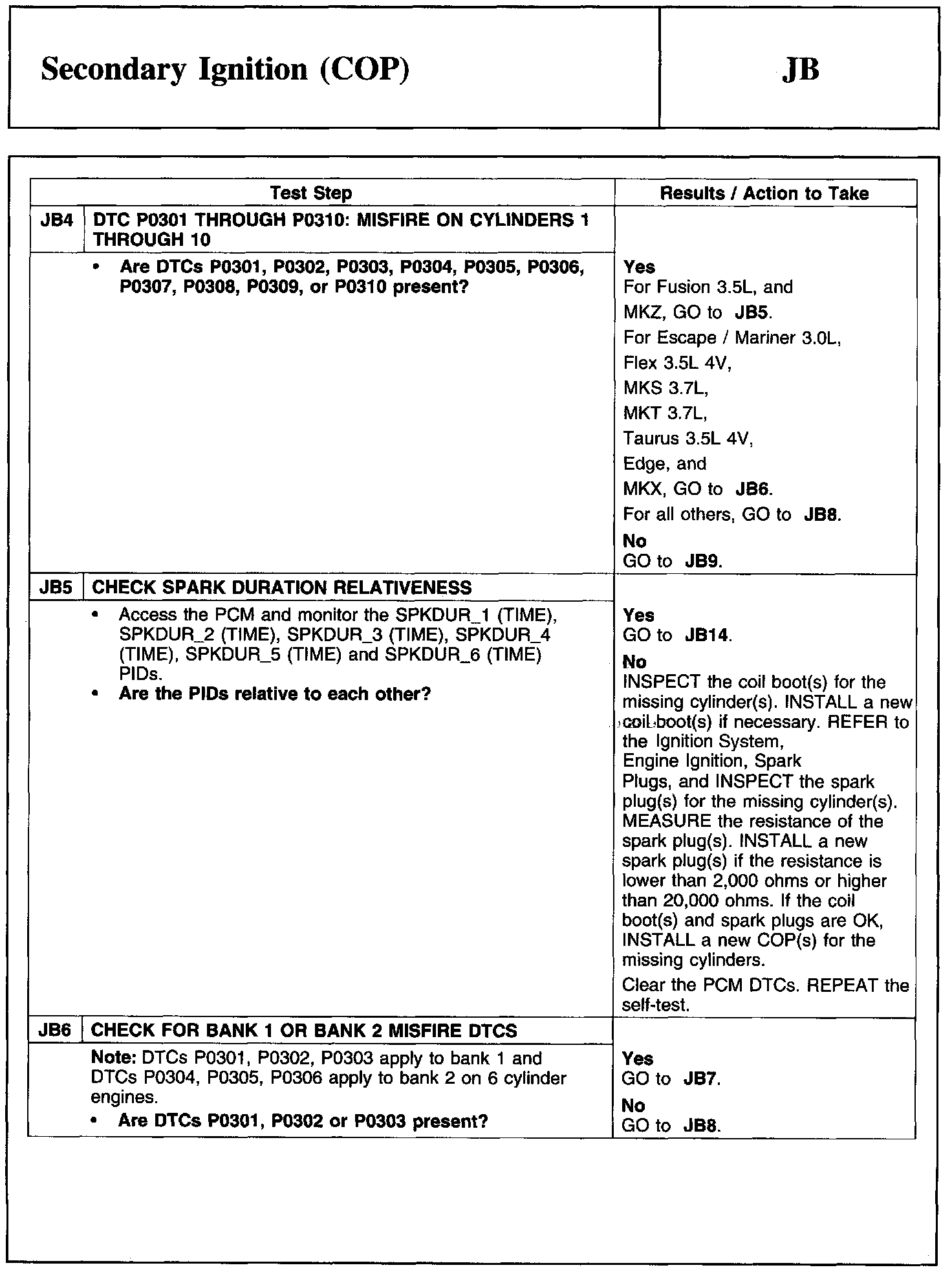

JB4-JB6:

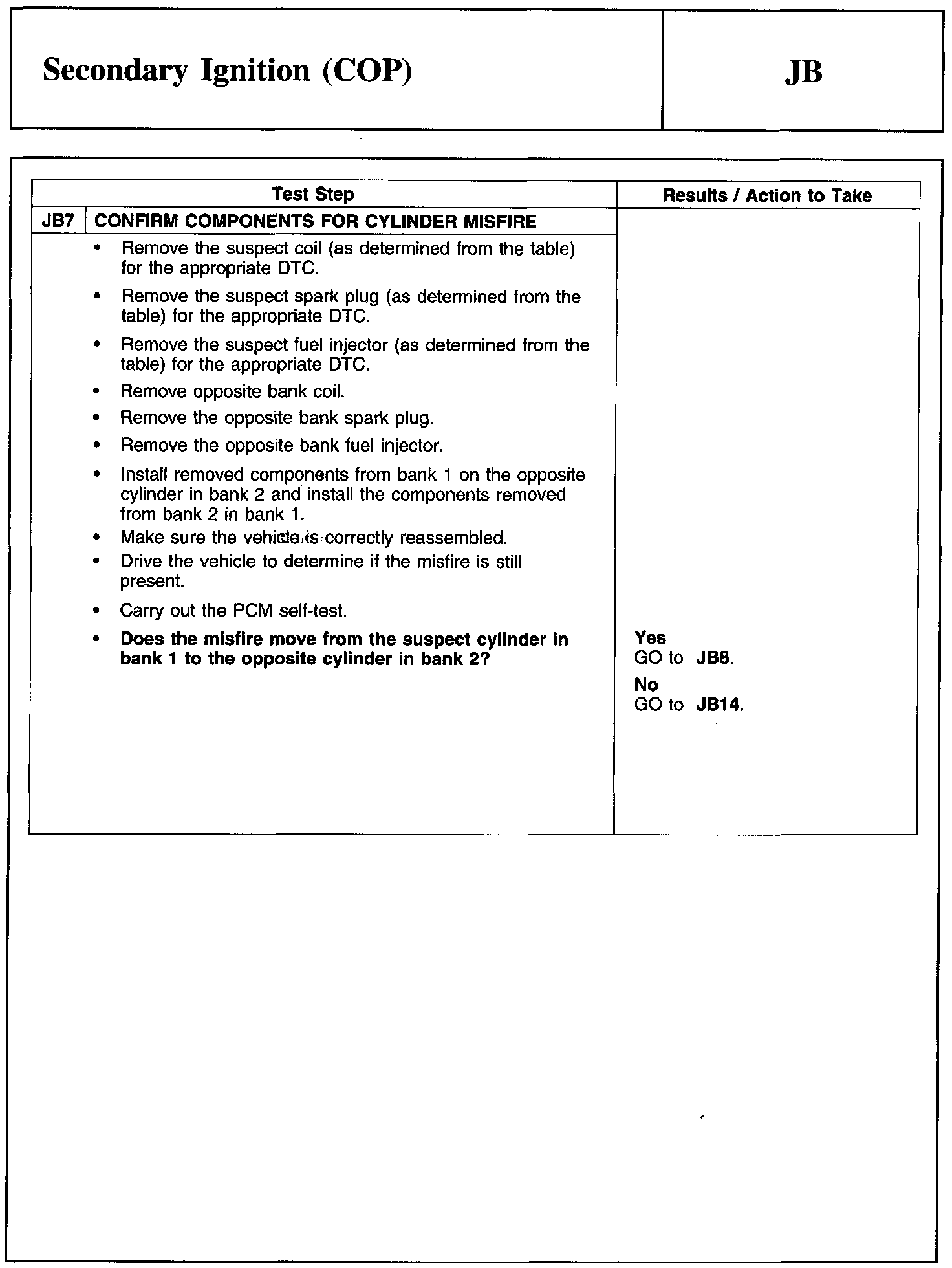

JB7:

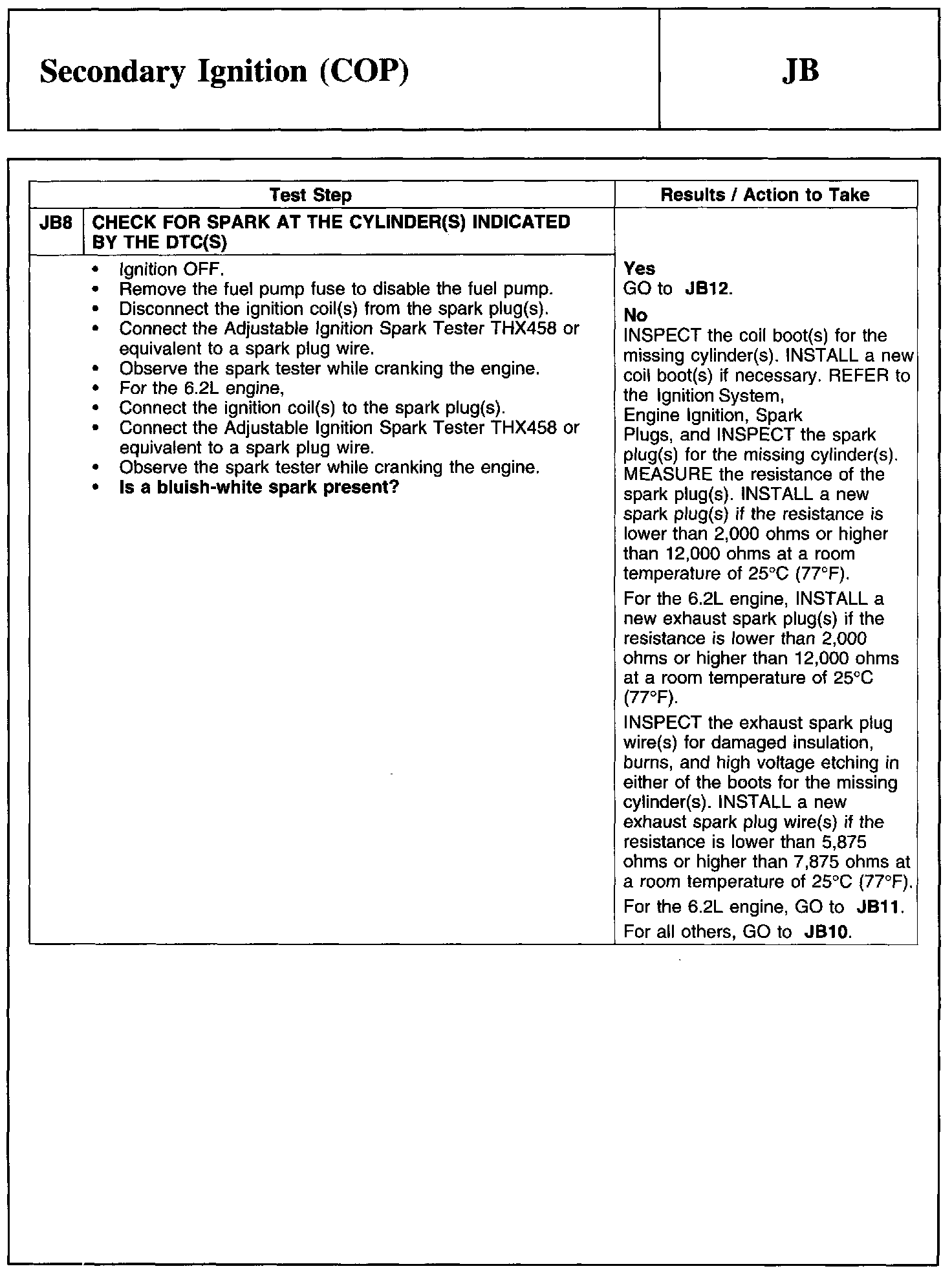

JB8:

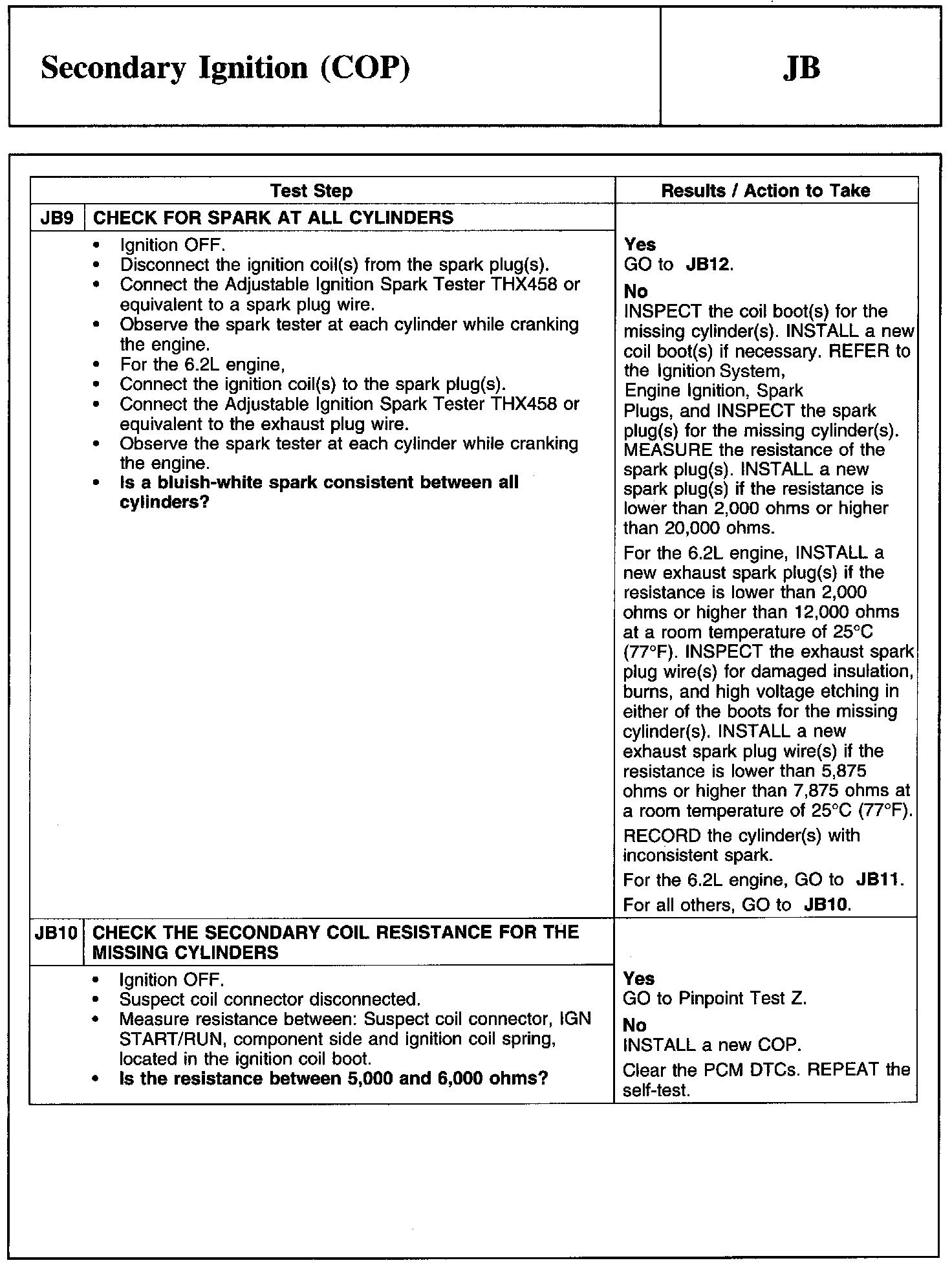

JB9-JB10:

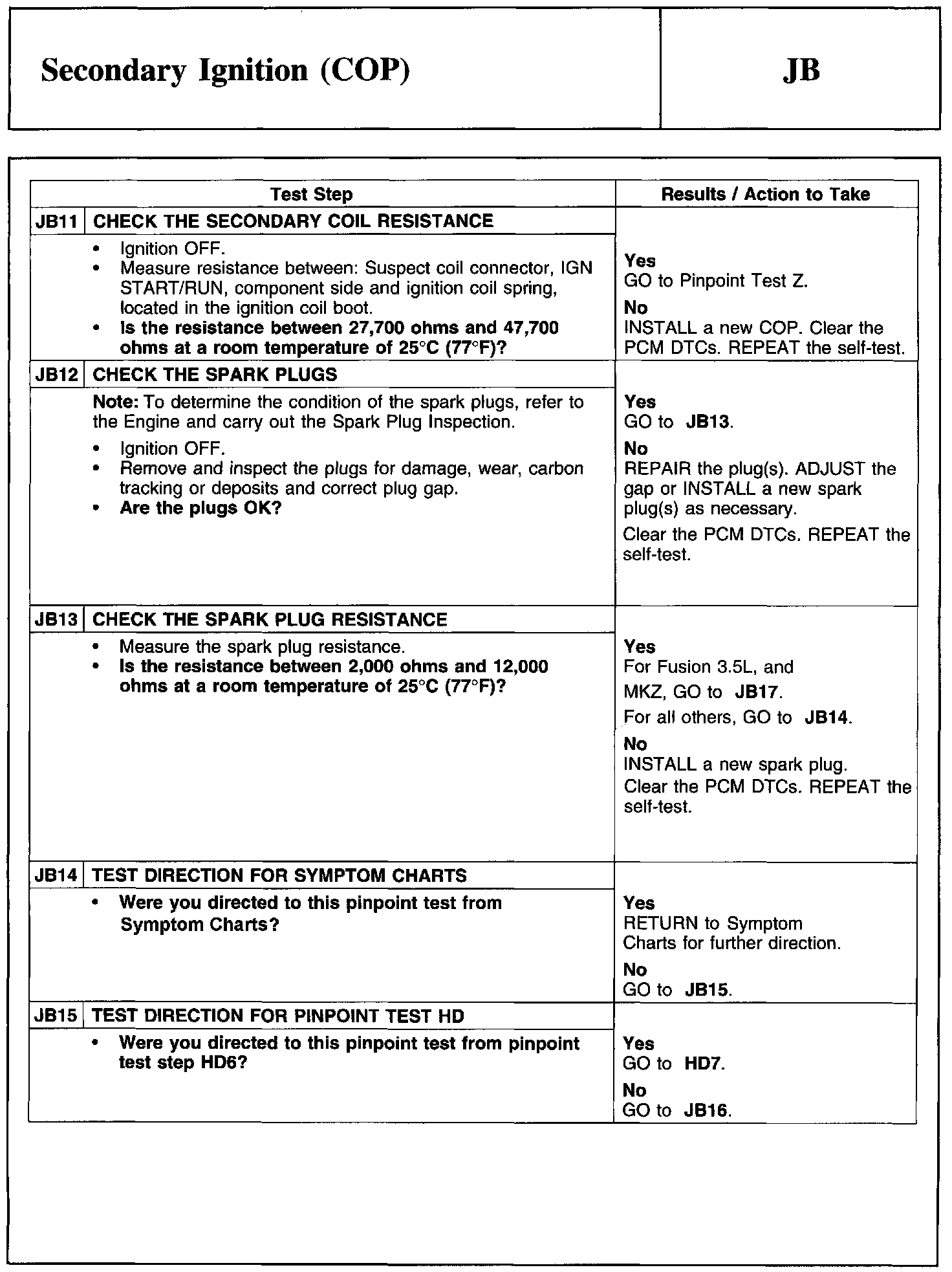

JB11-JB15:

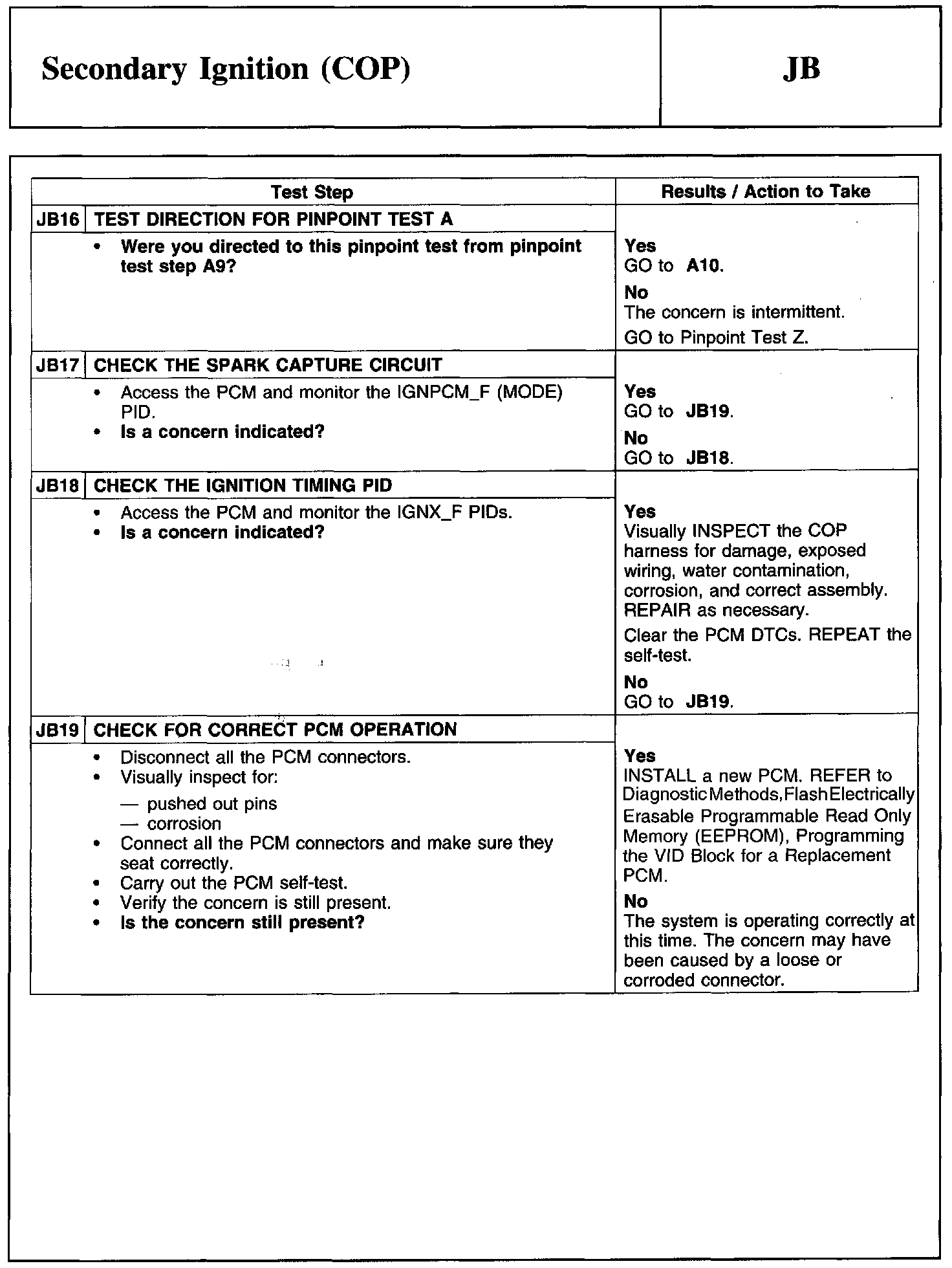

JB16-JB19:
