Driver Air Bag Module Connector End View - C216B

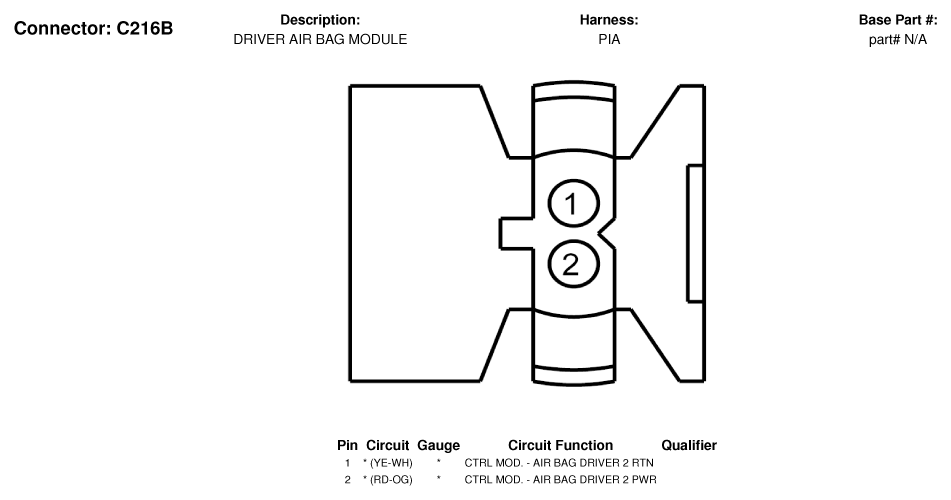

Fig 1: Driver Air Bag Module Connector End View (C216B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
