Driver Side Front Seat Control Switch Connector End View - C360B

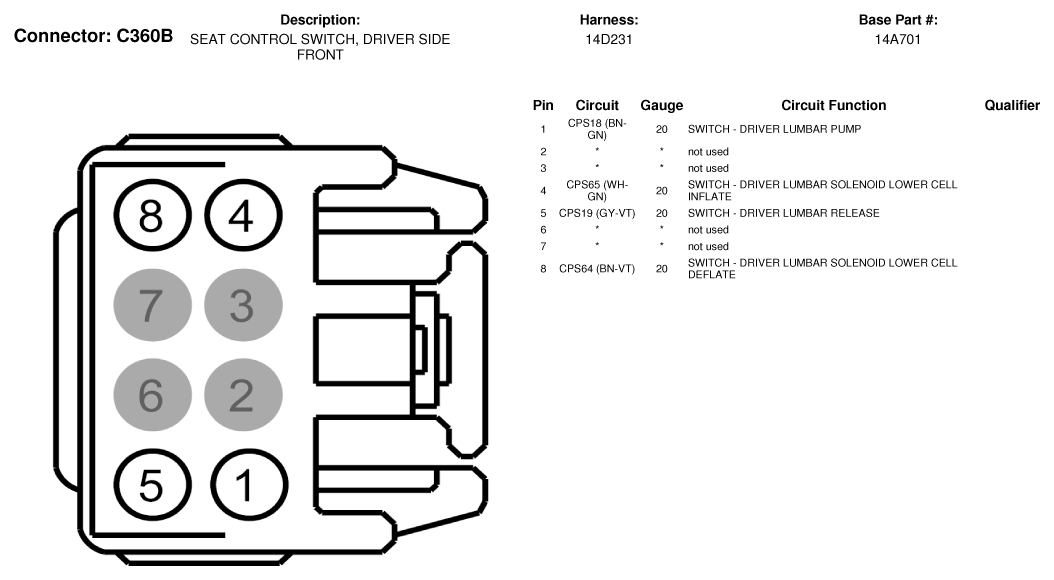

Fig 1: Driver Side Front Seat Control Switch Connector End View (C360B)
G07336100Courtesy of FORD MOTOR CO.
