Dual Climate Controlled Seat Module Connector End View - C3265A

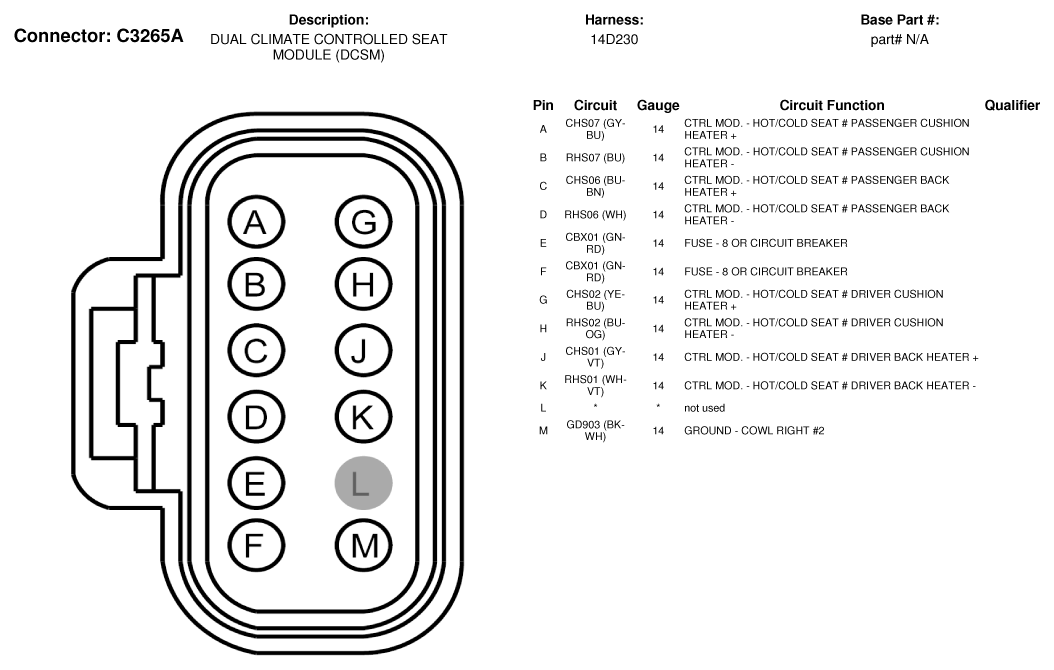

Fig 1: Dual Climate Controlled Seat Module Connector End View (C3265A)
G07336342Courtesy of FORD MOTOR CO.
