Passenger Climate Controlled Seat Module-2 Connector End View - C3365A

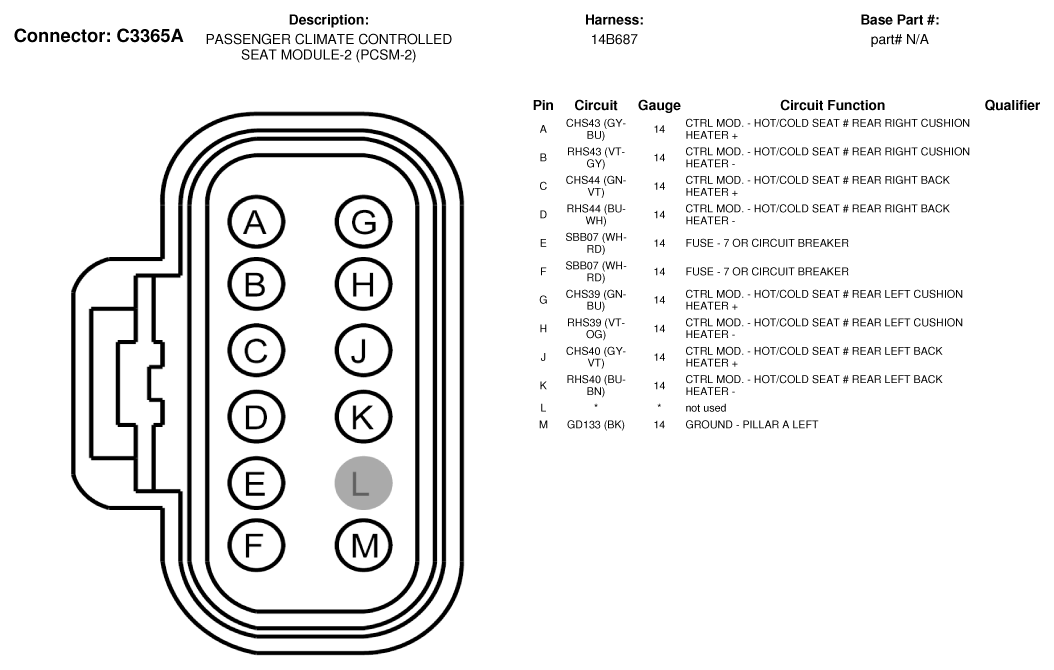

Fig 1: Passenger Climate Controlled Seat Module-2 Connector End View (C3365A)
G07336368Courtesy of FORD MOTOR CO.
