Passenger Climate Controlled Seat Module-2 Connector End View - C3365B

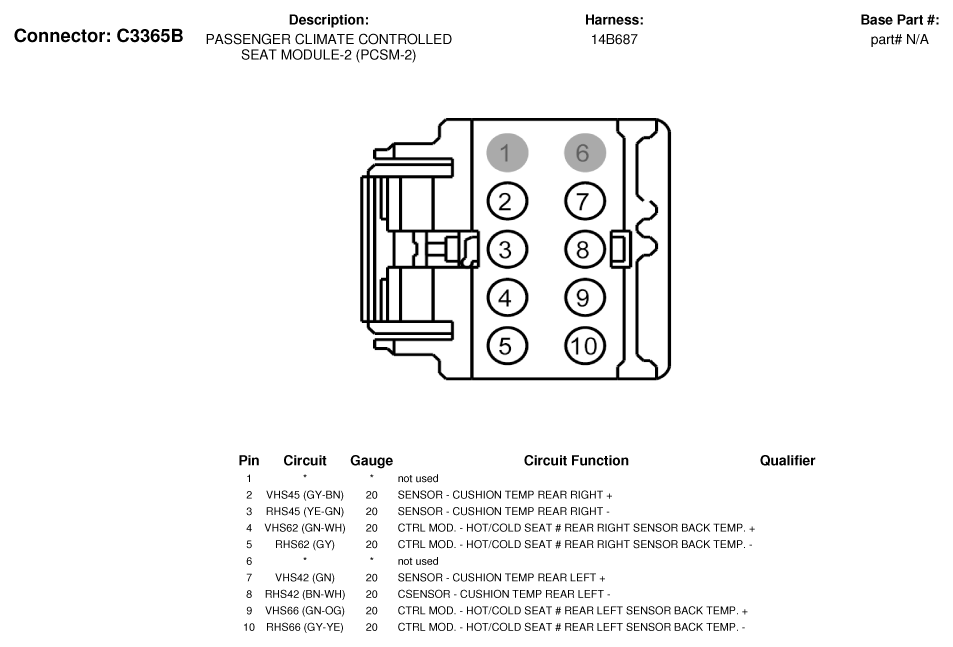

Fig 1: Passenger Climate Controlled Seat Module-2 Connector End View (C3365B)
G07336369Courtesy of FORD MOTOR CO.
