Stator Support and Gear Assembly: Disassembly

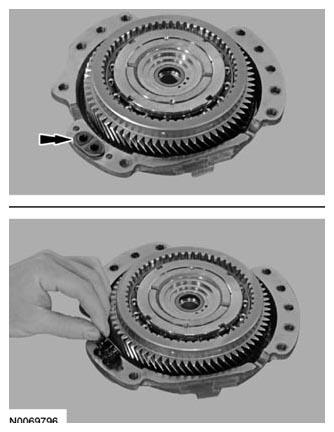

Fig 1: Removing Stator Support Assembly Seal

Courtesy of FORD MOTOR CO.

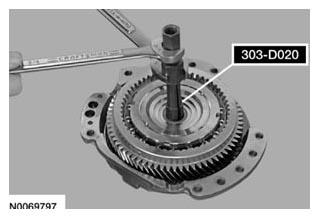

Install 7/8 Inch to 1 Inch Collet 303-D020 on the input shaft seal.

Fig 2: Installing Collet 303-D020 On Input Shaft Seal
Courtesy of FORD MOTOR CO.

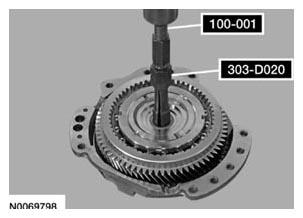

Assemble Slide Hammer 100-001 and 7/8 Inch to 1 Inch Collet 303-D020 and remove and discard the input shaft seal.

Fig 3: Removing Input Shaft Seal
Courtesy of FORD MOTOR CO.
Remove the drive sprocket thrust washer.

Fig 4: Removing Drive Sprocket Thrust Washer
Courtesy of FORD MOTOR CO.

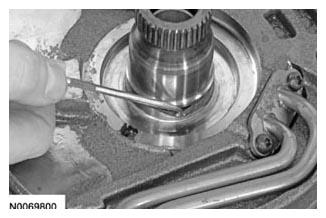

Using a suitable tool, remove the stator support-to-torque converter seal.

Fig 5: Removing Stator Support-To-Torque Converter Seal Using Suitable Seal
Courtesy of FORD MOTOR CO.

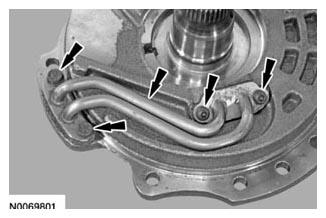

NOTE: Note the location of the Torx head and the hex head bolts for assembly.

Fig 6: Locating Stator Support Feed Tube Bolts

Courtesy of FORD MOTOR CO.

Remove the 4 bolts and the stator support feed tube.

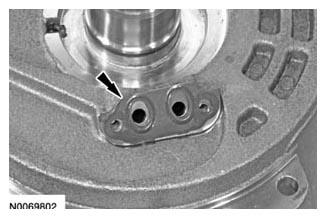

Remove and discard the gasket for the feed tube assembly.

Fig 7: Locating Feed Tube Assembly Gasket
Courtesy of FORD MOTOR CO.
Clean and inspect the stator support assembly for damage and install new, if necessary.
