Fuel Pump Control Module: Notes

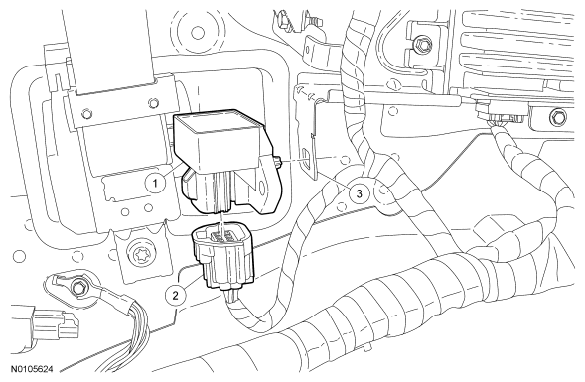

Fig 1: Identifying Fuel Pump Control Module
G06282209Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9345 Fuel Pump (FP) control module
2 14A464 FP control module electrical connector
3 - FP control module bracket
