Left Liftgate Obstacle Detection Strip Connector - C4172

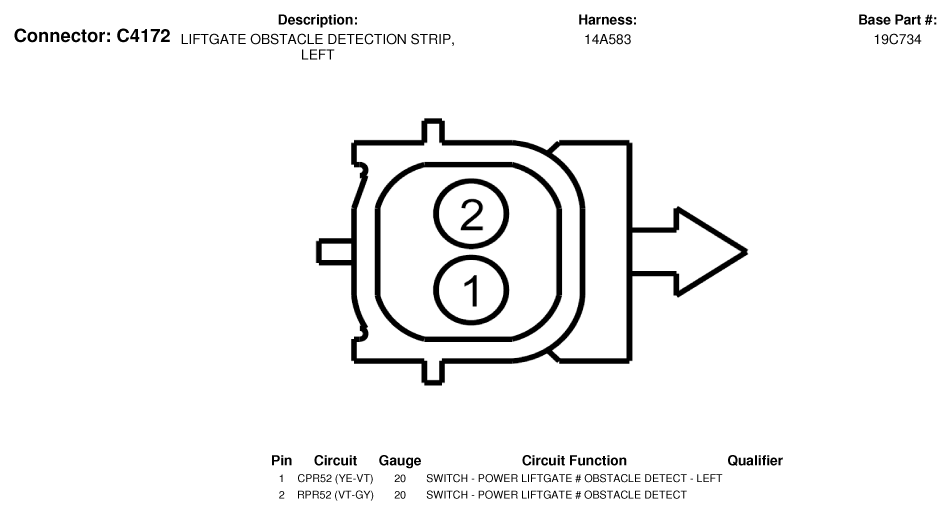

Fig 1: Left Liftgate Obstacle Detection Strip Connector End View (C4172)
G07336405Courtesy of FORD MOTOR CO.
