Seat Temperature Control Module
>>
C3036C Dual Climate Controlled Seat Module (DCSM)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

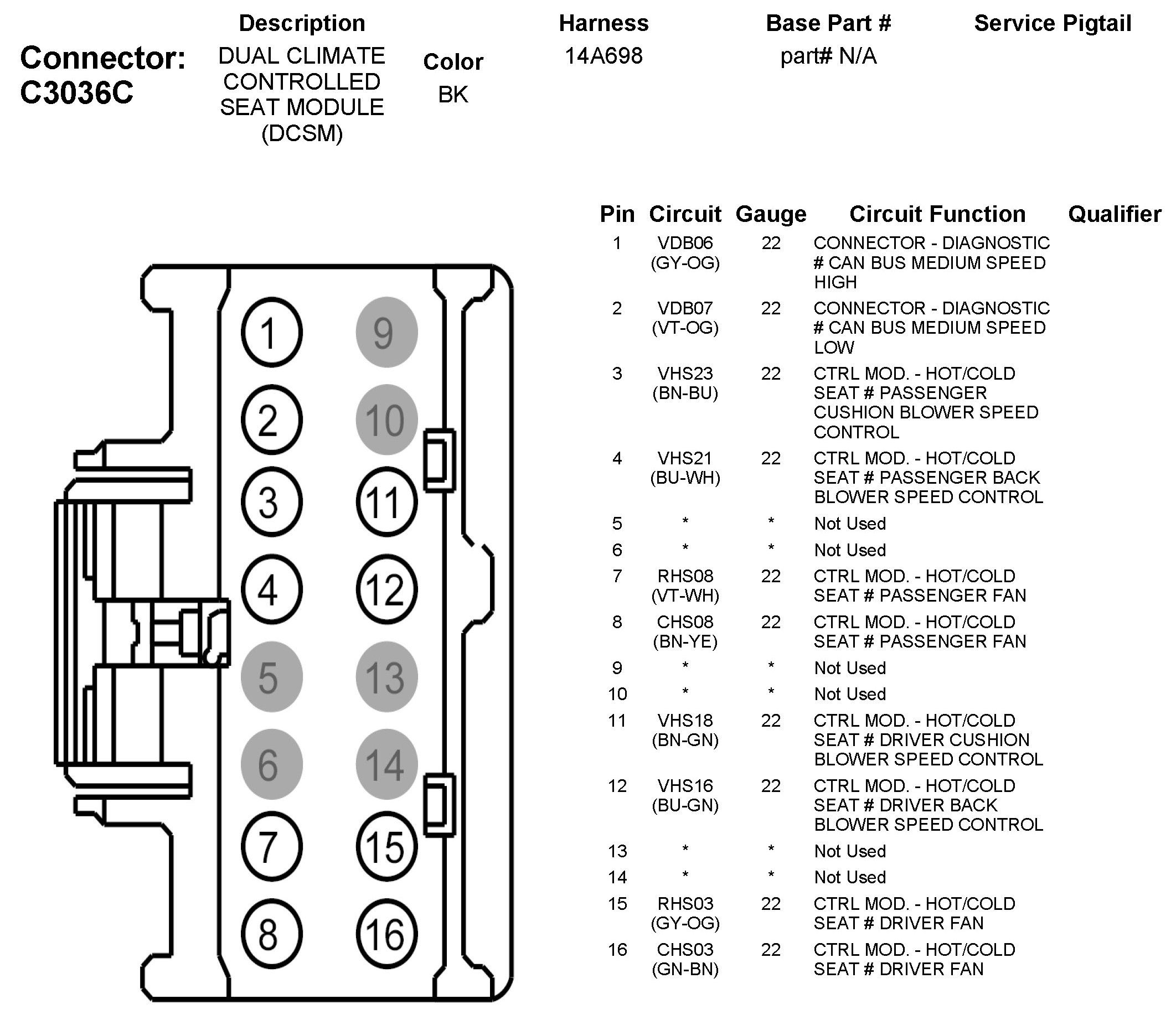

C3036C Dual Climate Controlled Seat Module (DCSM)
