Home >> Lincoln >> 2011 >> MKX AWD V6-3.7L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Temperature Sensor >> Diagrams >> Connector Views
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

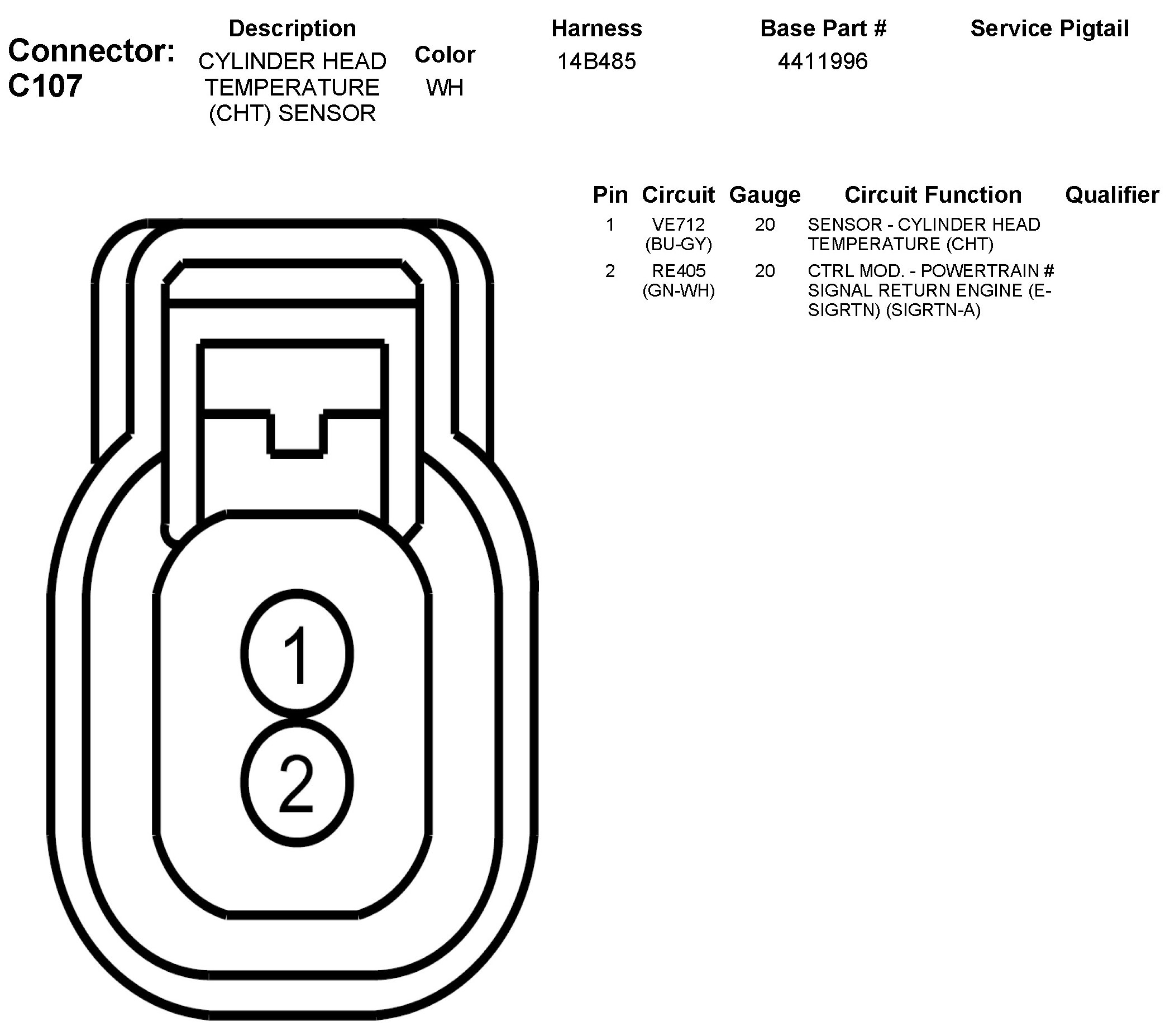

Connector Views
