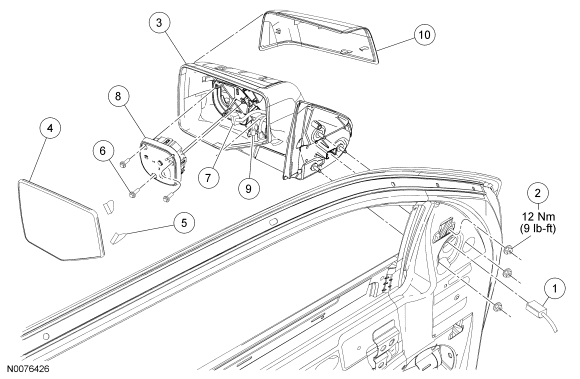

Exterior Mirrors - Exploded View
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH mirror shown, RH mirror similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 14631 | Exterior mirror electrical connector |
| 2 | N621905 | Exterior mirror nut (3 required) |
| 3 | 17683 LH/ 17682 RH | Exterior mirror assembly |
| 4 | 17K707 | Exterior mirror glass |
| 5 | - | Exterior mirror glass damper spring (part of 17K707) |
| 6 | - | Exterior mirror motor screw |
| 7 | - | Exterior mirror motor electrical connector |
| 8 | 17D696 | Exterior mirror motor |
| 9 | - | Exterior mirror glass electrical connector (if equipped) |
| 10 | 17D742 RH/ 17D743 LH | Exterior mirror cover |
- For additional information, refer to the procedures in this article.
