Camshaft Position (CMP) Sensor

NOTE: The Air Cleaner (ACL) outlet tube must be removed to service the RH cylinder head CMP sensors. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .

NOTE: The Air Cleaner (ACL) must be removed to service the LH cylinder head CMP sensors. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .

NOTE: Lubricate the Camshaft Position (CMP) sensor O-ring seal with clean engine oil before Installing the CMP sensor.

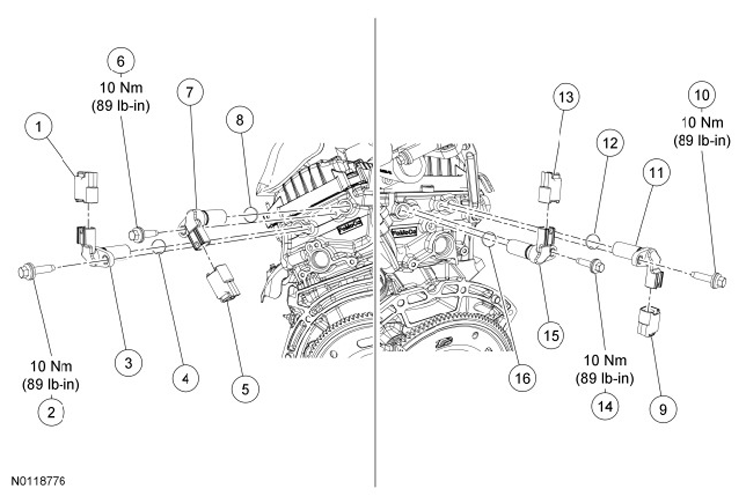

Fig 1: Exploded View Of Camshaft Position Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	LH cylinder head exhaust Camshaft Position (CMP) sensor electrical connector (part of 12A581)
2	W503275	LH cylinder head exhaust CMP sensor bolt
3	6B288	LH cylinder head exhaust CMP sensor
4	-	LH cylinder head exhaust CMP sensor O-ring seal (part of 6B288)
5	-	LH cylinder head intake Camshaft Position (CMP) sensor electrical connector (part of 12A581)
6	W503275	LH cylinder head intake CMP sensor bolt
7	6B288	LH cylinder head intake CMP sensor
8	-	LH cylinder head intake CMP sensor O-ring seal (part of 6B288)
9	-	RH cylinder head exhaust Camshaft Position (CMP) sensor electrical connector (part of 12A581)
10	W503275	RH cylinder head exhaust CMP sensor bolt
11	6B288	RH cylinder head exhaust CMP sensor
12	-	RH cylinder head exhaust CMP sensor O-ring seal (part of 6B288)
13	-	RH cylinder head intake Camshaft Position (CMP) sensor electrical connector (part of 12A581)
14	W503275	RH cylinder head intake CMP sensor bolt
15	6B288	RH cylinder head intake CMP sensor
16	-	RH cylinder head intake CMP sensor O-ring seal (part of 6B288)
