Master Window Control Switch Connector End View - C535A

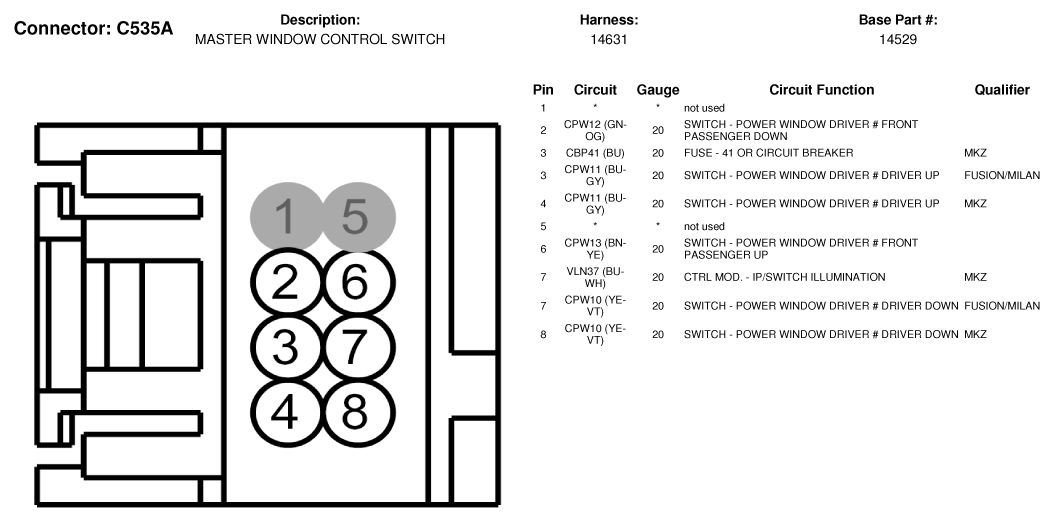

Fig 1: Master Window Control Switch Connector End View (C535A)
G07335668Courtesy of FORD MOTOR CO.
