Master window control switch: Schematic

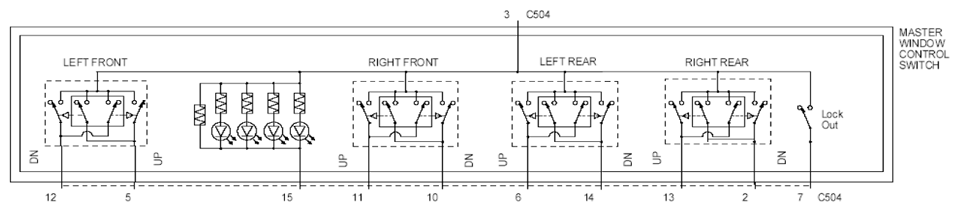

Fig 1: Master Window Control Switch - Component Testing
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
