Multifunction switch, Lamp portion: Schematic

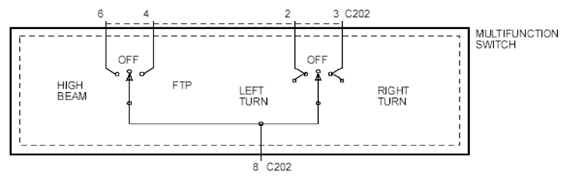

Fig 1: Multifunction Switch, Lamp Portion - Component Testing
G07919676Courtesy of FORD MOTOR CO.
