Home >> Lincoln >> 2012 >> MKS FWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Communications Control Module >> C3342 Accessory Protocol Interface Module (APIM)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

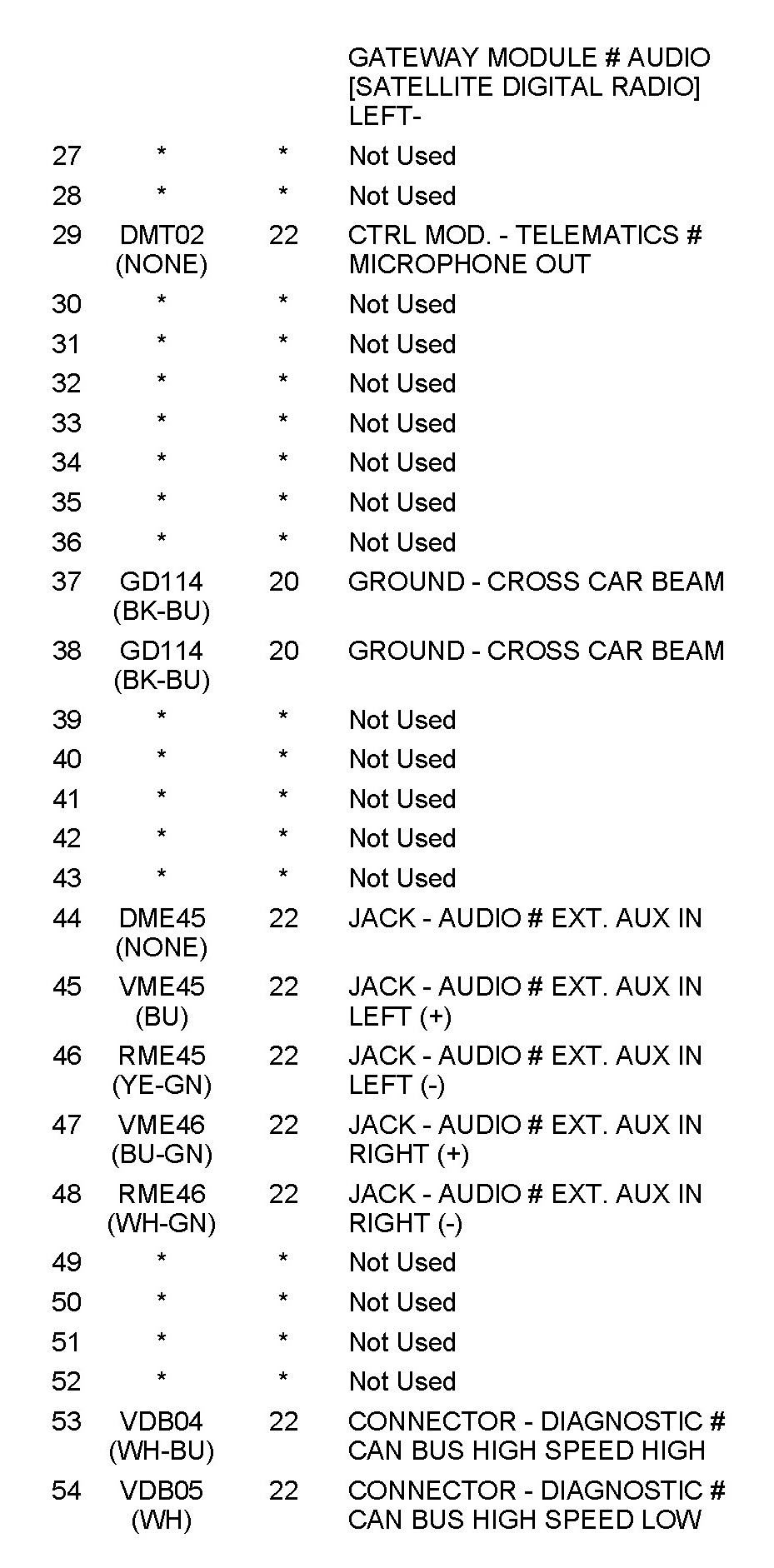

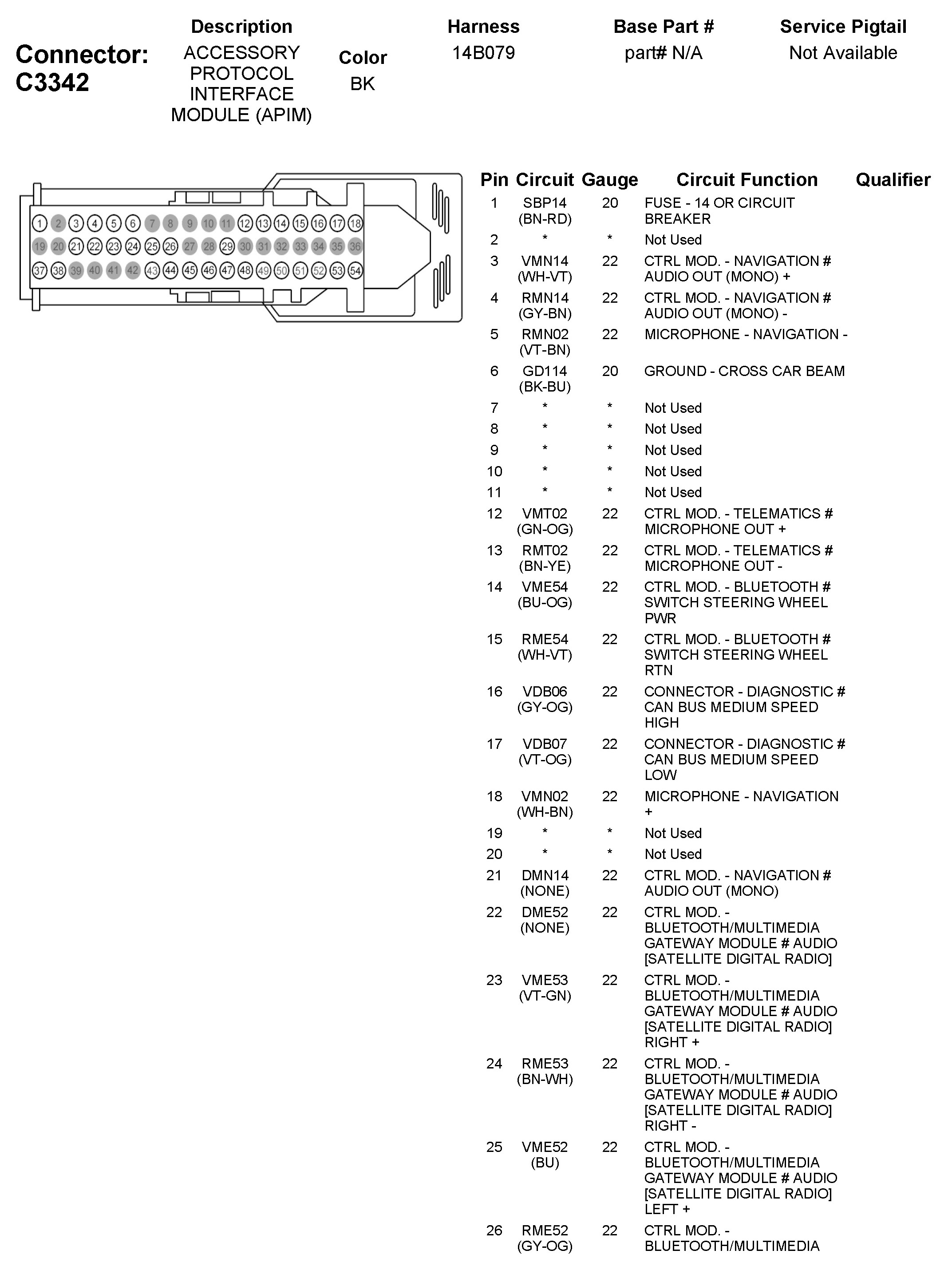

C3342 Accessory Protocol Interface Module (APIM)
