Spark Plug

Engine Ignition Components - Exploded View

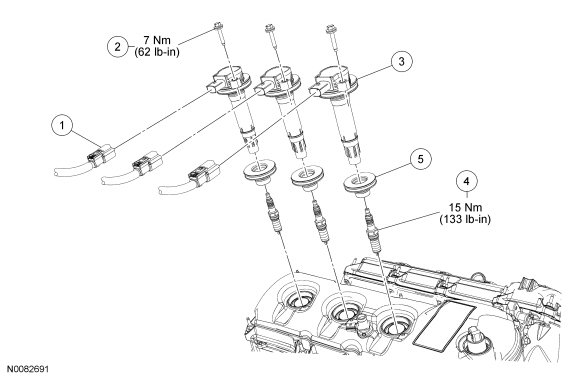

3.7L LH Side

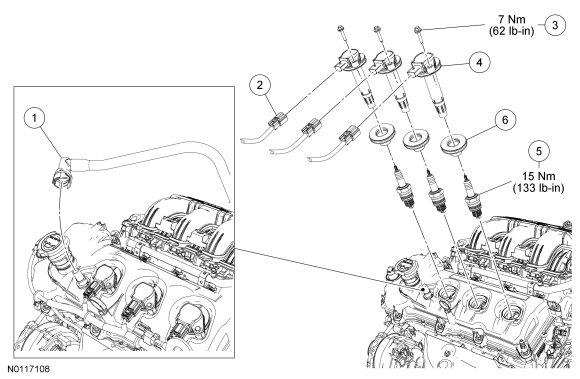

3.7L RH Side

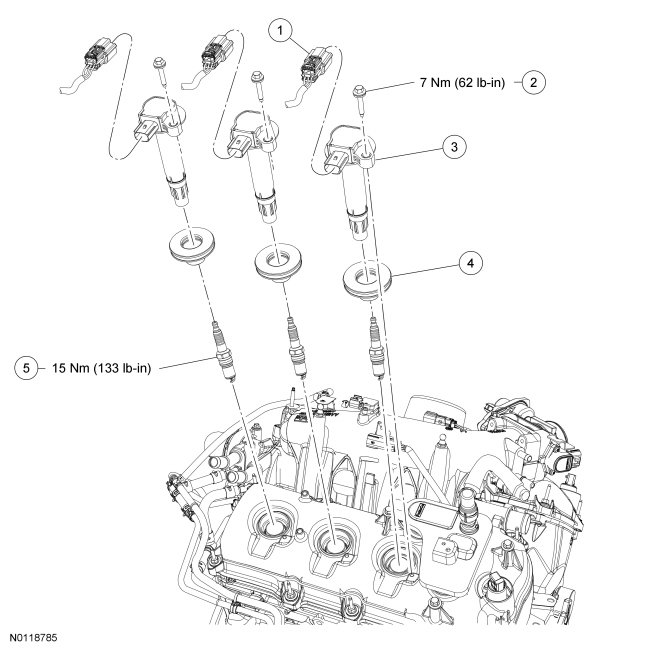

3.5L Gasoline Turbocharged Direct Injection (GTDI) LH Side

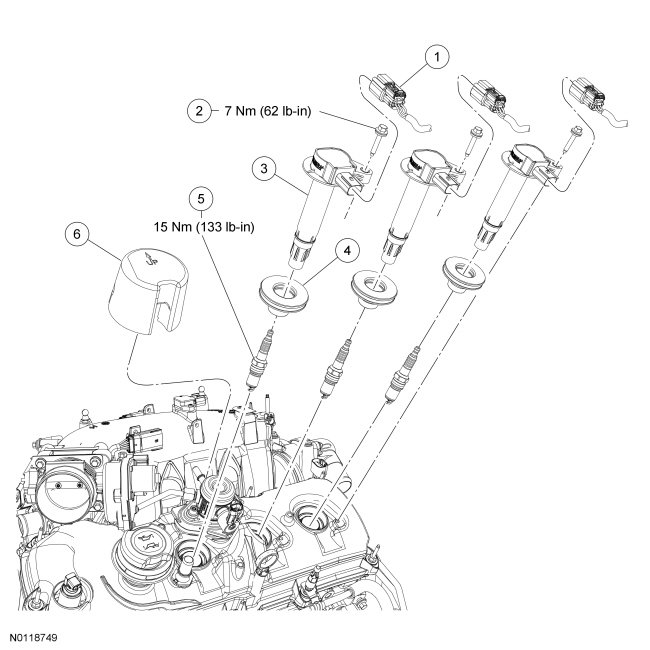

3.5L GTDI (Gasoline Turbocharged Direct Injection) RH Side










1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
