Front Controls Interface Module (FCIM): Notes
NOTE:
Vehicle with navigation shown in the illustration, others similar.

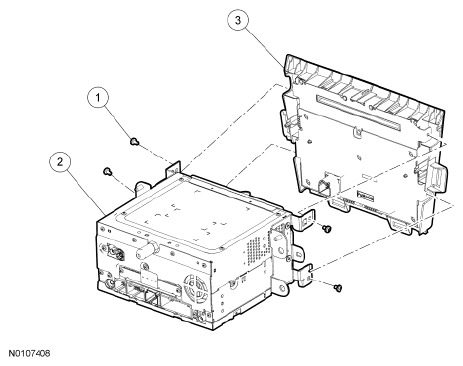

Fig 1: Identifying Audio Control Module (ACM)-To-Front Controls Interface Module (FCIM) And Screws And FCIM
| Item | Part Number | Description |
|---|---|---|
| 1 | W505510-S | Front Controls Interface Module (FCIM) screws (4 required) |
| 2 | 18C963/18806 | ACM (without navigation/with navigation) |
| 3 | 18842 | FCIM |
