Steering Column Shroud: Notes

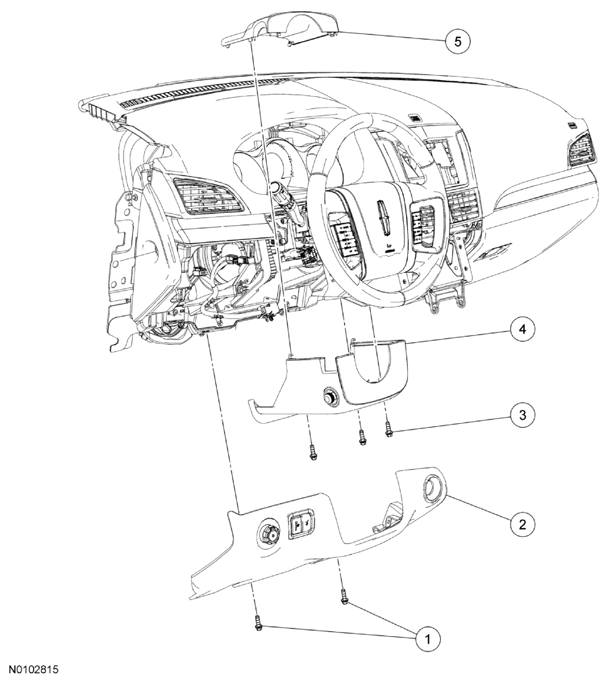

Fig 1: Exploded View Of Steering Column Shroud
G07789931Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N808453 Steering column opening trim panel screws (2 required)
2 044F08 Steering column opening trim panel
3 W713507 Steering column shroud screw (3 required)
4 3533 Lower steering column shroud
5 3530 Upper steering column shroud
