Accessory Protocol Interface Module (APIM): Notes

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

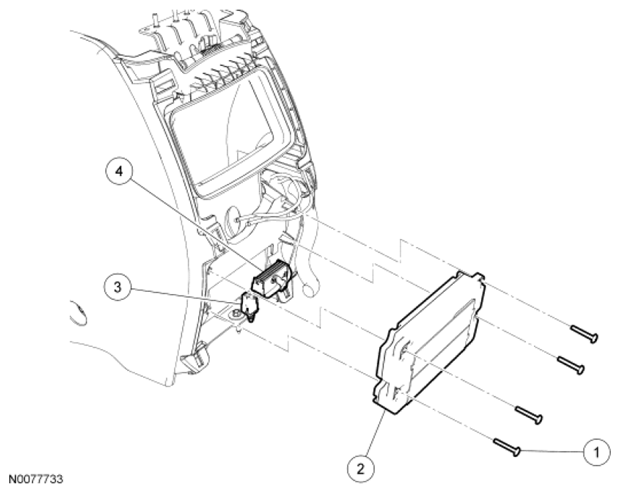

Fig 1: Identifying APIM With Universal Serial Bus Cable, Screws And Electrical Connectors

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	Accessory Protocol Interface Module (APIM) screws (4 required) (part of 78045A06)
2	14D212	APIM
3	14D202	Universal Serial Bus (USB) cable
4	-	APIM electrical connector (part of 14B079)
