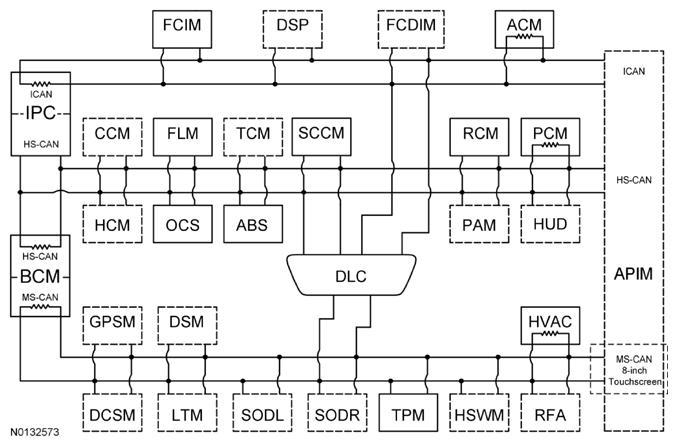

Network Topology: Notes
WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Dashed lines indicate an optional module.
| Module Name | Network Type | Termination Module |
|---|---|---|
| Accessory Protocol Interface Module (APIM) (if equipped) | HS-CAN | No |
| MS-CAN (with 8-inch touchscreen) | No | |
| I-CAN | No | |
| ABS module | HS-CAN | No |
| Audio Front Control Module (ACM) | I-CAN | Yes |
| Body Control Module (BCM) (gateway) | HS-CAN | Yes |
| MS-CAN | Yes | |
| Cruise-Control Module (C-CM) (if equipped) | HS-CAN | No |
| Audio Digital Signal Processing (DSP) module (if equipped) | I-CAN | No |
| Driver Seat Module (DSM) (if equipped) | MS-CAN | No |
| Dual Climate Controlled Seat Module (DCSM) (if equipped) | MS-CAN | No |
| Front Lighting Control Module (FLM) | HS-CAN | No |
| Front Controls Interface Module (FCIM) | I-CAN | No |
| Front Control/Display Interface Module (FCDIM) (if equipped) | I-CAN | No |
| Global Positioning System Module (GPSM) (if equipped) | MS-CAN | No |
| Heated Steering Wheel Module (HSWM) (if equipped) | MS-CAN | No |
| Headlamp Control Module (HCM) (if equipped) | HS-CAN | No |
| Head Up Display (HUD) module (if equipped) | HS-CAN | No |
| HVAC module | MS-CAN | Yes |
| Instrument Panel Cluster (IPC) (gateway module) | HS-CAN | No |
| I-CAN | Yes | |
| Liftgate/Trunk Module (LTM) (if equipped) | MS-CAN | No |
| Occupant Classification System Module (OCSM) | HS-CAN | No |
| Parking Aid Module (PAM) (if equipped) | HS-CAN | No |
| PCM | HS-CAN | Yes |
| Remote Function Actuator (RFA) module (if equipped) | MS-CAN | No |
| Restraints Control Module (RCM) | HS-CAN | No |
| Steering Column Control Module (SCCM) | HS-CAN | No |
| Side Obstacle Detection Control Module - Left (SOD-L) (if equipped) | MS-CAN | No |
| Side Obstacle Detection Control Module - Right (SOD-R) (if equipped) | MS-CAN | No |
| Tire Pressure Monitor (TPM) | MS-CAN | No |
| Transmission Control Module (TCM) (if equipped) | HS-CAN | No |
