Disassembly And Assembly Of Subassemblies: Piston: Notes
WARNING: This page is about a different car, the 2012 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) |
WSS-M2C945-A |

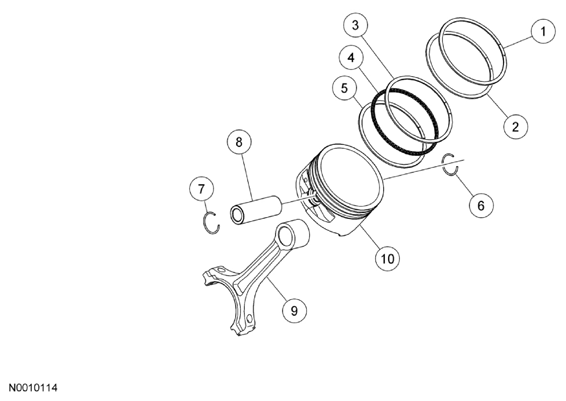

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Piston compression upper ring (part of 6148) |
| 2 | - | Piston compression lower ring (part of 6148) |
| 3 | - | Piston oil control upper segment ring (part of 6148) |
| 4 | - | Piston oil control spacer (part of 6148) |
| 5 | - | Piston oil control lower segment ring (part of 6148) |
| 6 | 6140 | Piston pin retainer clip |
| 7 | 6140 | Piston pin retainer clip |
| 8 | 6135 | Piston pin |
| 9 | 6200 | Connecting rod |
| 10 | 6110 | Piston |
