Engine Mount: Installation

WARNING: This page is about a different car, the 2012 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Install the engine mount and the 3 bolts.
- Tighten to 90 Nm (66 lb-ft).

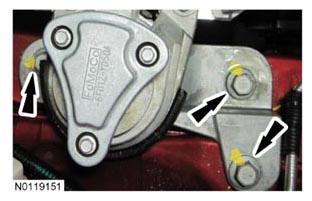

  Fig 1: Locating Engine Mount Bolts
  Courtesy of FORD MOTOR CO.
Install the 4 engine mount nuts.
- Tighten to 63 Nm (46 lb-ft).

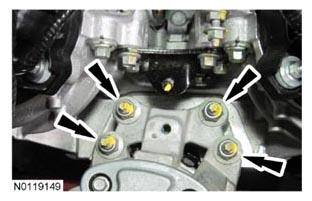

  Fig 2: Locating Engine Mount Nuts
  Courtesy of FORD MOTOR CO.
Install the engine mount brace, nut and bolt.
- Tighten to 20 Nm (177 lb-in).

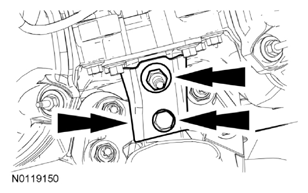

  Fig 3: Locating Nut, Bolt And Engine Mount Brace
  Courtesy of FORD MOTOR CO.
Position the engine coolant degas bottle and install the 3 bolts.
- Tighten to 9 Nm (80 lb-in).
Install the engine appearance cover. For additional information, refer to ENGINE APPEARANCE COVER - EXPLODED VIEW .
