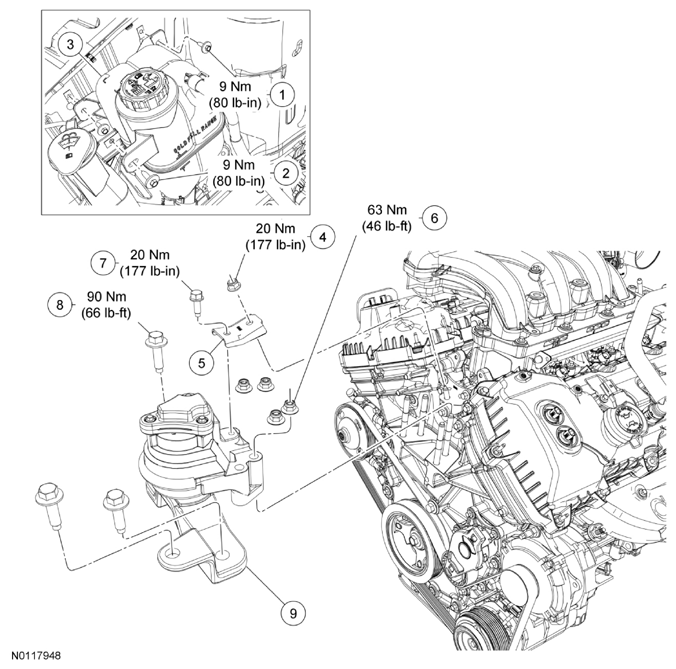

Engine Mount: Notes
WARNING: This page is about a different car, the 2012 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W807658 | Degas bottle-to-fender bolt (2 required) |
| 2 | W709603 | Degas bottle-to-washer bottle bolt |
| 3 | 8A080 | Degas bottle |
| 4 | W520102 | Engine mount brace nut |
| 5 | 6K075 | Engine mount brace |
| 6 | W712334 | Engine mount-to-engine nut (4 required) |
| 7 | W712511 | Engine mount brace bolt |
| 8 | W712507 | Engine mount-to-frame bolt (3 required) |
| 9 | 6F012 | Engine mount |
