Timing Drive Components: Notes

WARNING: This page is about a different car, the 2012 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOLS CHART

	Hold Down, Secondary Chain 303-1530
	Tool, Camshaft Holding 303-1248

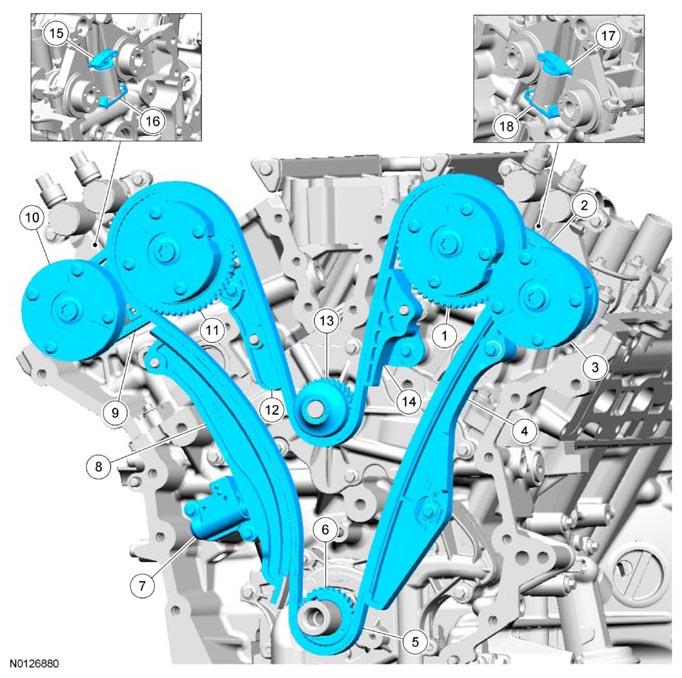

Fig 1: Identifying Timing Drive Components

G07929593

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6C524	LH intake Variable Camshaft Timing (VCT) assembly
2	6268	LH secondary timing chain
3	6C525	LH exhaust VCT assembly
4	6B274	LH primary timing chain guide
5	6268	Primary timing chain
6	6306	Crankshaft timing chain sprocket
7	6L266	Primary timing chain tensioner
8	6K255	RH primary timing chain tensioner arm
9	6268	RH secondary timing chain
10	6C525	RH exhaust VCT assembly
11	6C524	RH intake VCT assembly
12	6K297	RH primary timing chain guide
13	-	Coolant pump gear (part of 8501)
14	6K297	LH primary timing chain guide
15	6K254	RH secondary timing chain tensioner
16	6K297	RH secondary timing chain tensioner shoe
17	6K254	LH secondary timing chain tensioner
18	6K297	LH secondary timing chain tensioner shoe
