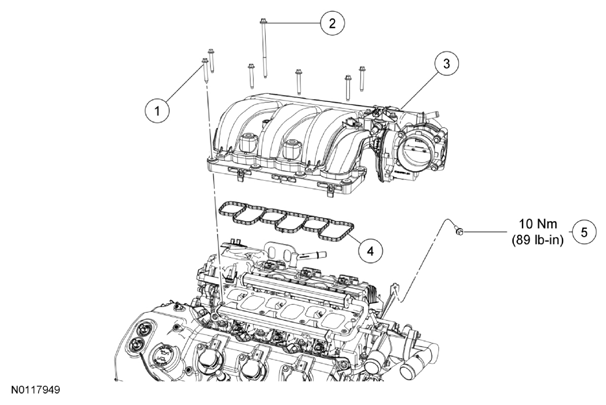

Upper Intake Manifold: Notes
WARNING: This page is about a different car, the 2012 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
9Y450 |
Upper intake manifold bolt (6 required) |
| 2 |
W715096 |
Upper intake manifold bolt |
| 3 |
9424 |
Upper intake manifold |
| 4 |
9H486 |
Upper intake manifold gasket |
| 5 |
W503275 |
Upper intake manifold support bracket bolt |
