Connector End Views C2300 - Global Positioning System Module (GPSM)

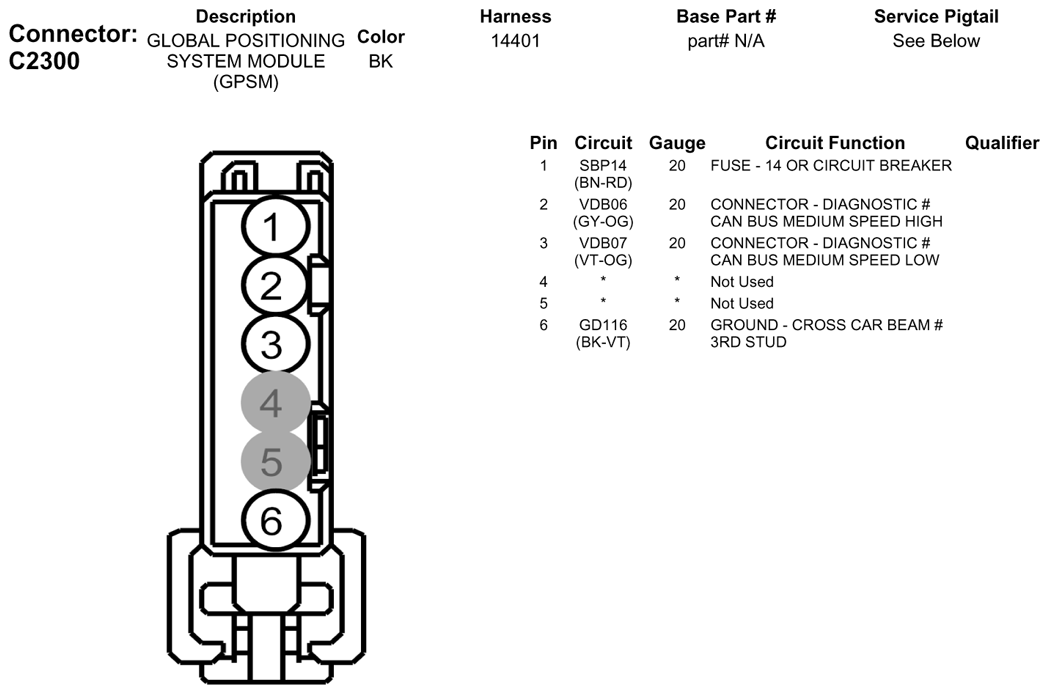

Fig 1: Connector End Views C2300 - Global Positioning System Module (GPSM)
G07923440Courtesy of FORD MOTOR CO.
Available Pigtail Kits
Pigtail Kit Part Number WPT-873

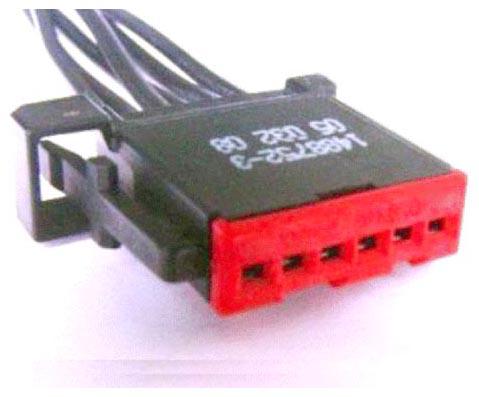

G07923441
 Service Part Number: 6U2Z-14S411-LA
Gauge: 20
Pin material: Tin
Cavities: 6
Vehicle Uses
  • Mirror - Sideview
  • Sensor - Throttle Position
  • Switch - A/C Compressor Clutch Cycling
Pigtail Kit Part Number WPT-958

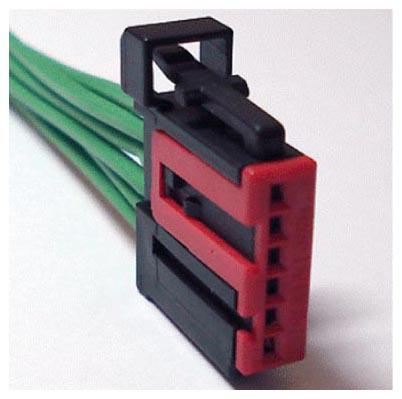

G07923442
 Service Part Number: 6U2Z-14S411-LB
Gauge: 18 20
Pin material: Tin & Silver
Cavities: 6
Vehicle Uses
  • Antenna - GPS
  • Module - Global Positioning
