Connector End Views C2402 - Front Controls Interface Module (FCIM)

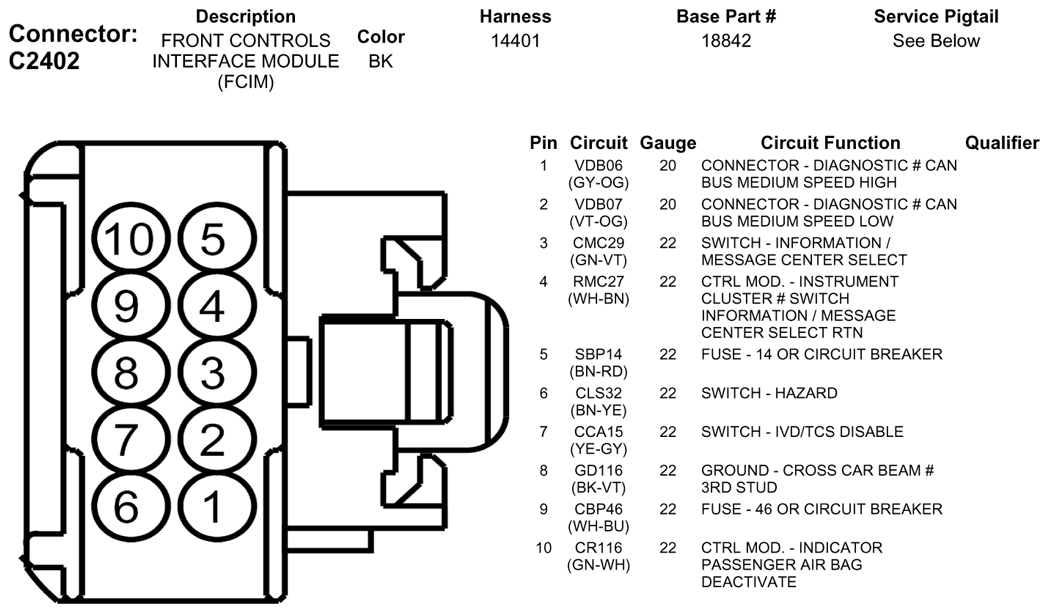

Fig 1: Connector End Views C2402 - Front Controls Interface Module (FCIM)
G07923468Courtesy of FORD MOTOR CO.
Available Pigtail Kits
Pigtail Kit Part Number WPT-1083

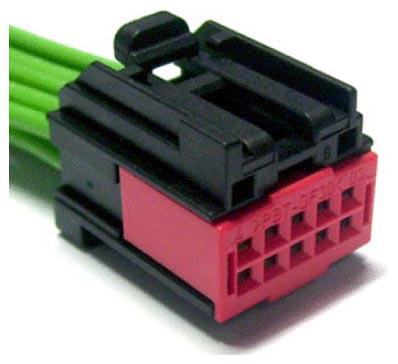

G07923469
 Service Part Number: AU2Z-14S411-AHA
Gauge: 18
Pin material: Silver
Cavities: 10
Vehicle Uses
  • Module - Front Interface
  • Switch - Heater A/C Blower (Rear)
