Connector End Views C2403 - Front Controls Interface Module (FCIM)

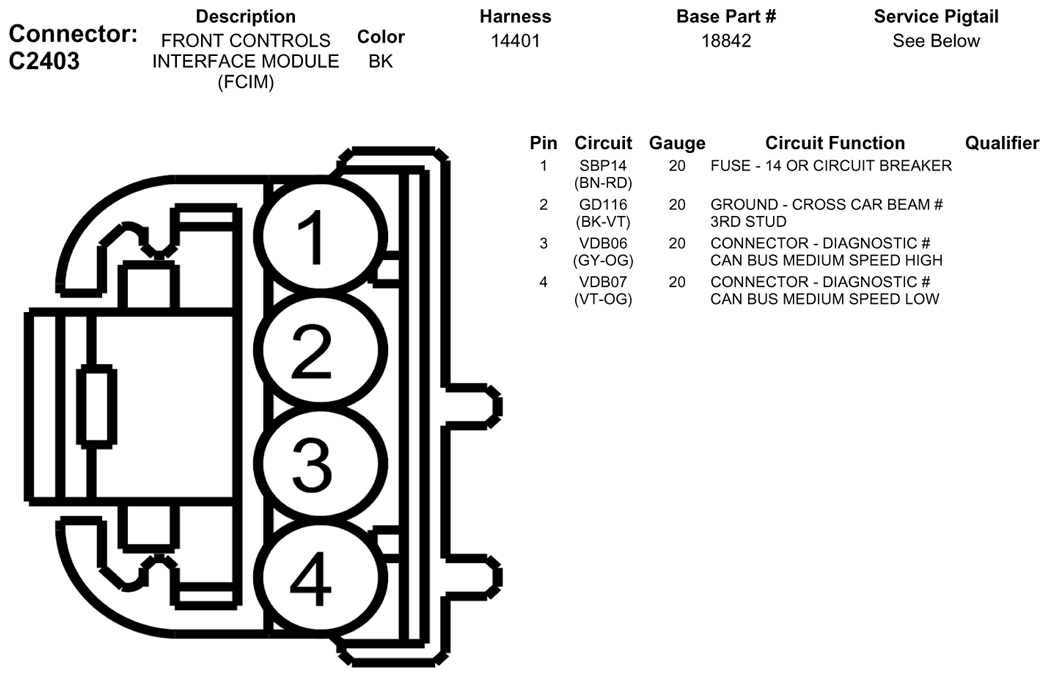

Fig 1: Connector End Views C2403 - Front Controls Interface Module (FCIM)
G07923470Courtesy of FORD MOTOR CO.
Available Pigtail Kits
Pigtail Kit Part Number WPT-874

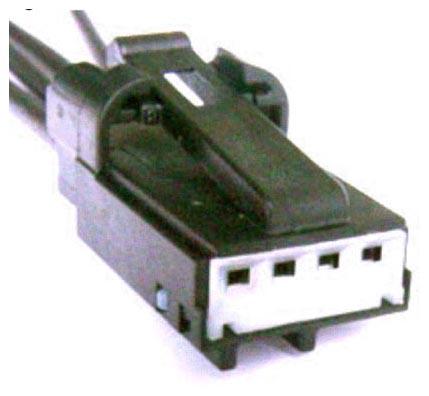

G07923471
 Service Part Number: 6U2Z-14S411-JA
Gauge: 18
Pin material: Tin
Cavities: 4
Vehicle Uses
  • Relay - Oil Level
  • Sensor - Compass
  • Sensor - Turbine Shaft Speed
  • Sensor - Turbo Intake Pressure/Temperature
Pigtail Kit Part Number WPT-982

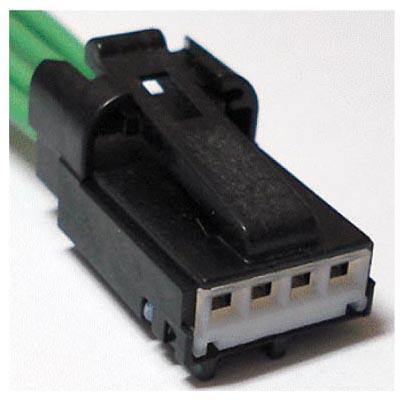

G07923472
 Service Part Number: 6U2Z-14S411-JB
Gauge: 18
Pin material: Silver
Cavities: 4
Vehicle Uses
  • Module - Auto Lamps
  • Module - Front Interface
  • Sensor - EATC In Car Temperature
  • Sensor - Sunload
  • Solenoid - Brake Shift Park Interlock
  • Switch - Door Lock (LH)
  • Switch - Door Lock (RH)
