Connector End Views C2408 - Front Controls Interface Module (FCIM)

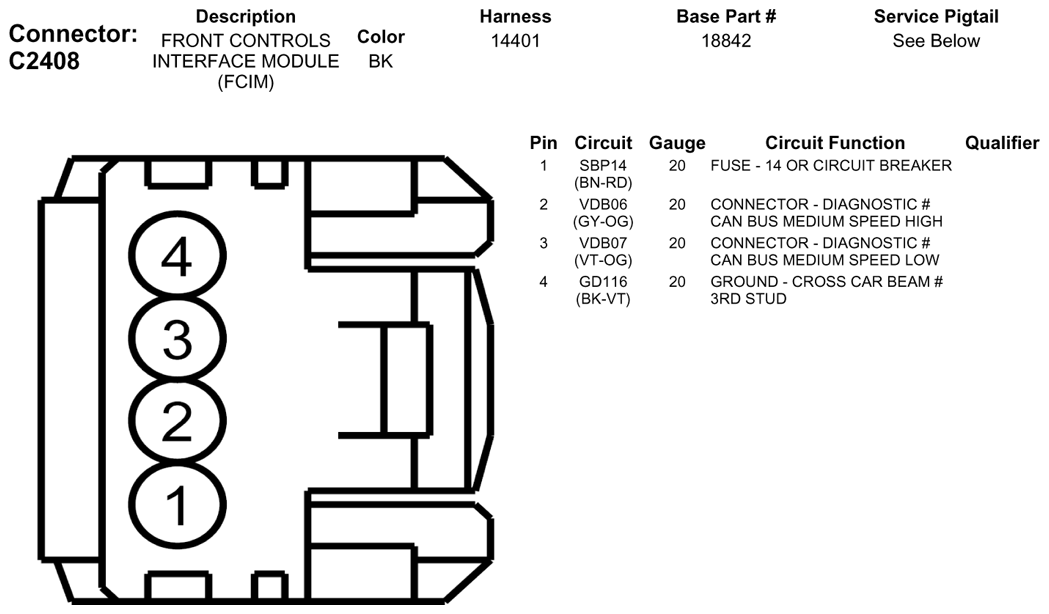

Fig 1: Connector End Views C2408 - Front Controls Interface Module (FCIM)
G07923476Courtesy of FORD MOTOR CO.
Available Pigtail Kits
Pigtail Kit Part Number WPT-1102

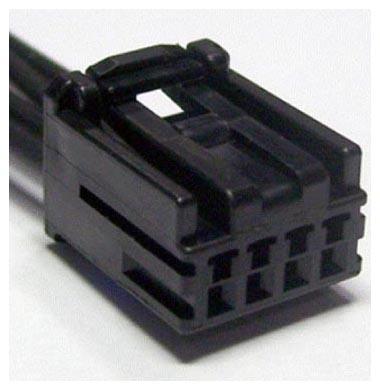

G07923477
 Service Part Number: AU2Z-14S411-BAA
Gauge: 20
Pin material: Tin
Cavities: 4
Vehicle Uses
  • Module - Front Interface
