Connector End Views C240D - Audio Control Module (ACM)

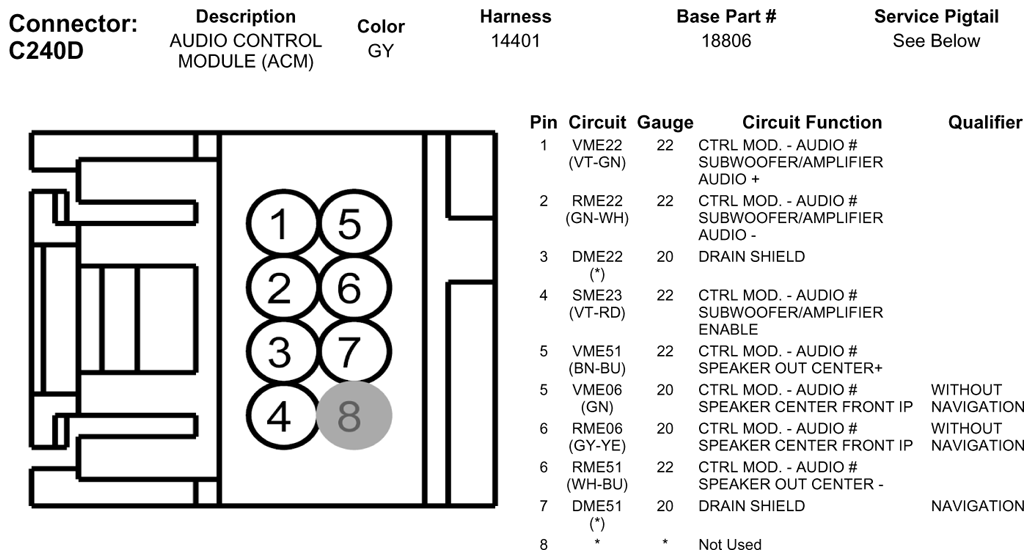

Fig 1: Connector End Views C240D - Audio Control Module (ACM)
G07923003Courtesy of FORD MOTOR CO.
Available Pigtail Kits
Pigtail Kit Part Number WPT-998  Service Part Number: 3U2Z-14S411-DLB
Gauge: 18
Pin material: Silver
Cavities: 8
Vehicle Uses
  • Radio
  • Radio - Amplifier
  • Switch - Fuel Filler Door
  • Switch - Message Center
  • Switch - Power Mirror
  • Switch - Power Window - Driver
  • Switch - Seat Lumbar
  • Switch - Steering Column Tilt/Telescope
  • Switch - Upfitter
Pigtail Kit Part Number WPT-219

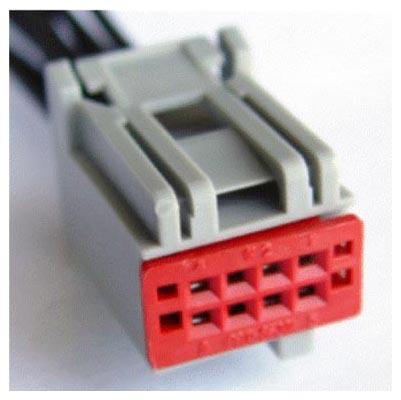

G07923004
 Service Part Number: 3U2Z-14S411-DLA
Gauge: 18
Pin material: Tin
Cavities: 8
Vehicle Uses
  • Radio
  • Radio - Amplifier
  • Switch - Fuel Filler Door
  • Switch - Message Center
  • Switch - Power Mirror
  • Switch - Power Window
  • Switch - Seat Lumbar
  • Switch - Steering Column Tilt/Telescope
