Connector End Views C4235A - Audio Digital Signal Processing (DSP) Module

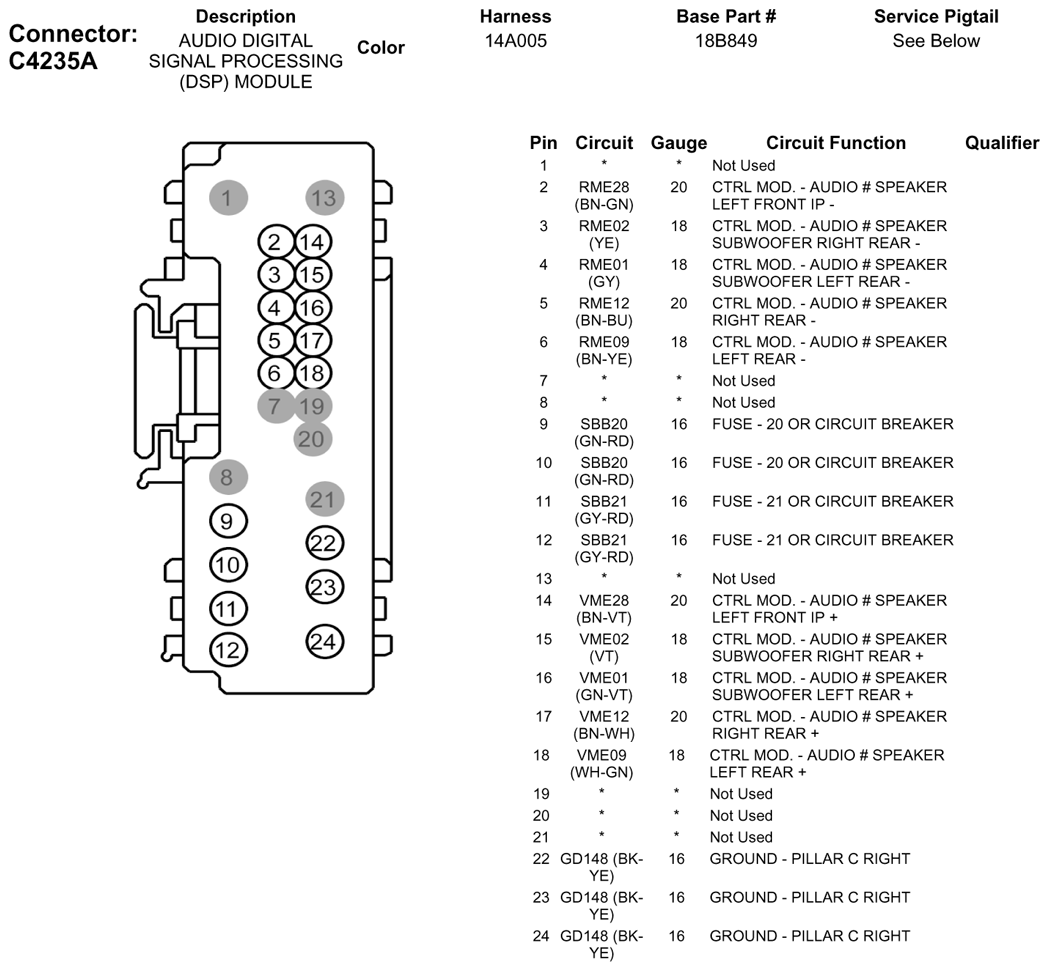

Fig 1: Connector End Views C4235A - Audio Digital Signal Processing (DSP) Module
G07923646Courtesy of FORD MOTOR CO.
Available Pigtail Kits
Pigtail Kit Part Number WPT-1033

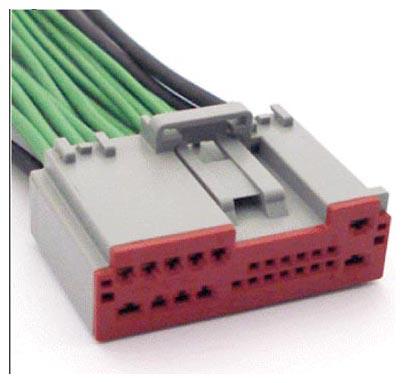

G07923647
 Service Part Number: 9U2Z-14S411-YA
Gauge: 12 14 18
Pin material: Tin & Silver
Cavities: 24
Vehicle Uses
  • Module - Driver Door
  • Module - Seat Memory
  • Radio
  • Radio - Amplifier
