Connector End Views C4235B - Audio Digital Signal Processing (DSP) Module

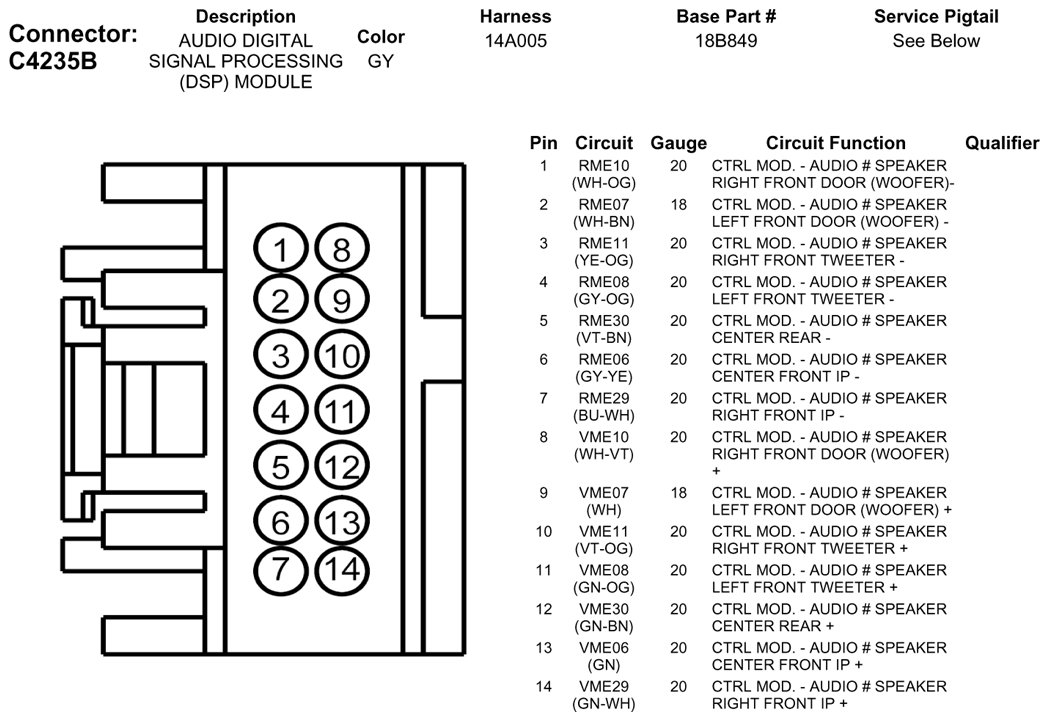

Fig 1: Connector End Views C4235B - Audio Digital Signal Processing (DSP) Module
G07923648Courtesy of FORD MOTOR CO.
Available Pigtail Kits
Pigtail Kit Part Number WPT-287
G07923649
 Service Part Number: 3U2Z-14S411-JEA
Gauge: 18
Pin material: Tin
Cavities: 13
Vehicle Uses
  • Lamp - Overhead Console
  • Radio
  • Radio - Amplifier
  • Switch - Moon Roof/Sun Roof
Pigtail Kit Part Number WPT-974

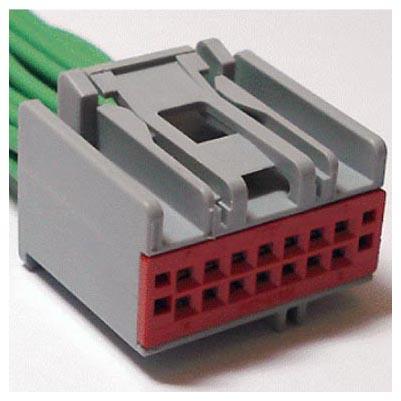

G07923650
 Service Part Number: 3U2Z-14S411-JEB
Gauge: 18
Pin material: Silver
Cavities: 14
Vehicle Uses
  • Lamp - Overhead Console
  • Module - Seat Memory
  • Radio
  • Radio - Amplifier
  • Switch - Moon Roof/Sun Roof
