Connector End Views C4235C - Audio Digital Signal Processing (DSP) Module

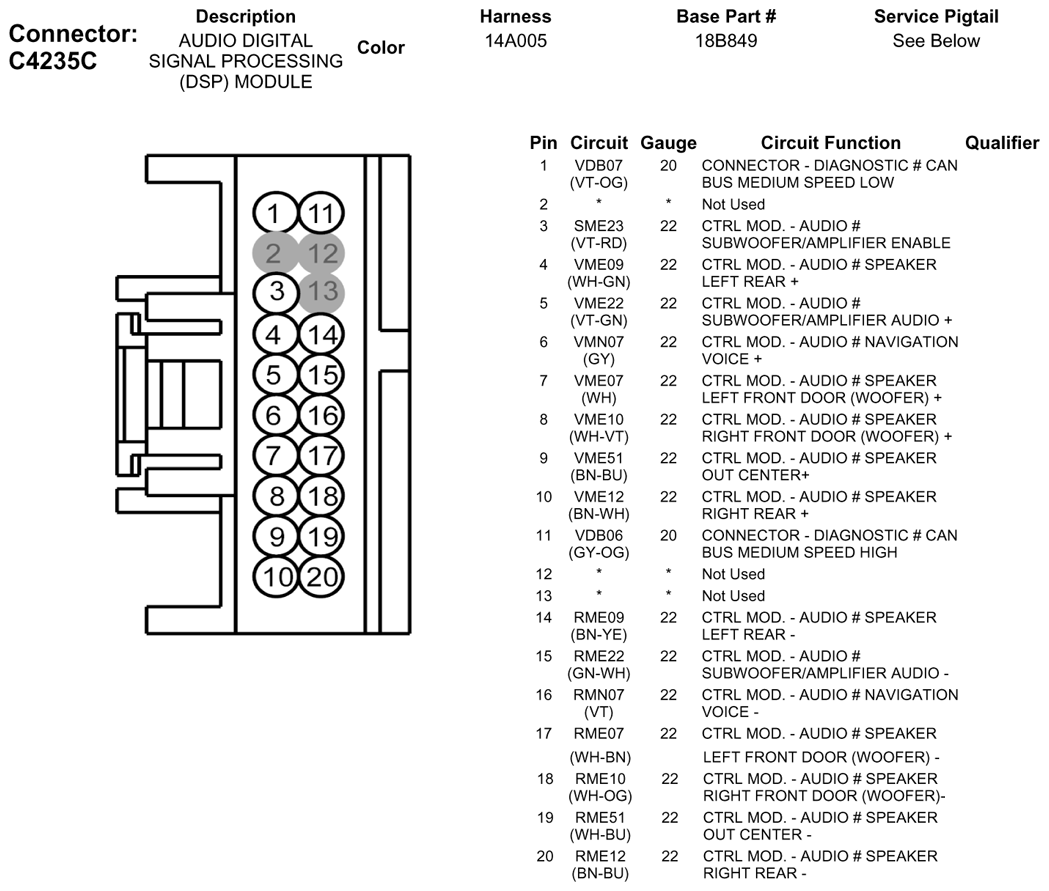

Fig 1: Connector End Views C4235C - Audio Digital Signal Processing (DSP) Module
G07923651Courtesy of FORD MOTOR CO.
Available Pigtail Kits
Pigtail Kit Part Number WPT-1199

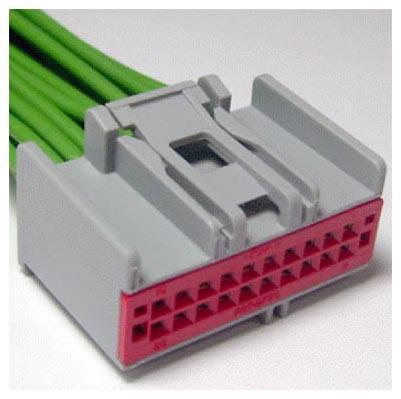

G07923652
 Service Part Number: 3U2Z-14S411-FCB
Gauge: 18
Pin material: Silver
Cavities: 20
Vehicle Uses
  • Instrument Cluster
  • Module - Seat Memory
  • Monitor - Video/DVD
  • Radio - Amplifier
  • Switch - Heater A/C Blower (Rear)
Pigtail Kit Part Number WPT-255

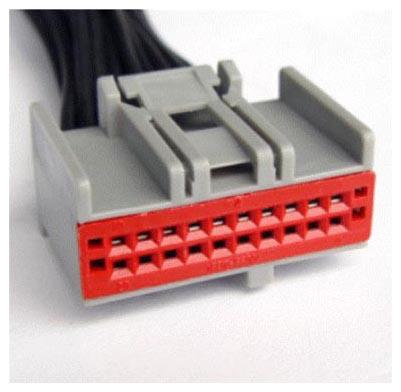

G07923653
 Service Part Number: 3U2Z-14S411-FCA
Gauge: 18
Pin material: Tin
Cavities: 20
Vehicle Uses
  • Module - Seat Memory
  • Monitor - Video/DVD
  • Radio - Amplifier
