Connector End Views C4240A - Audio Digital Signal Processing (DSP) Module

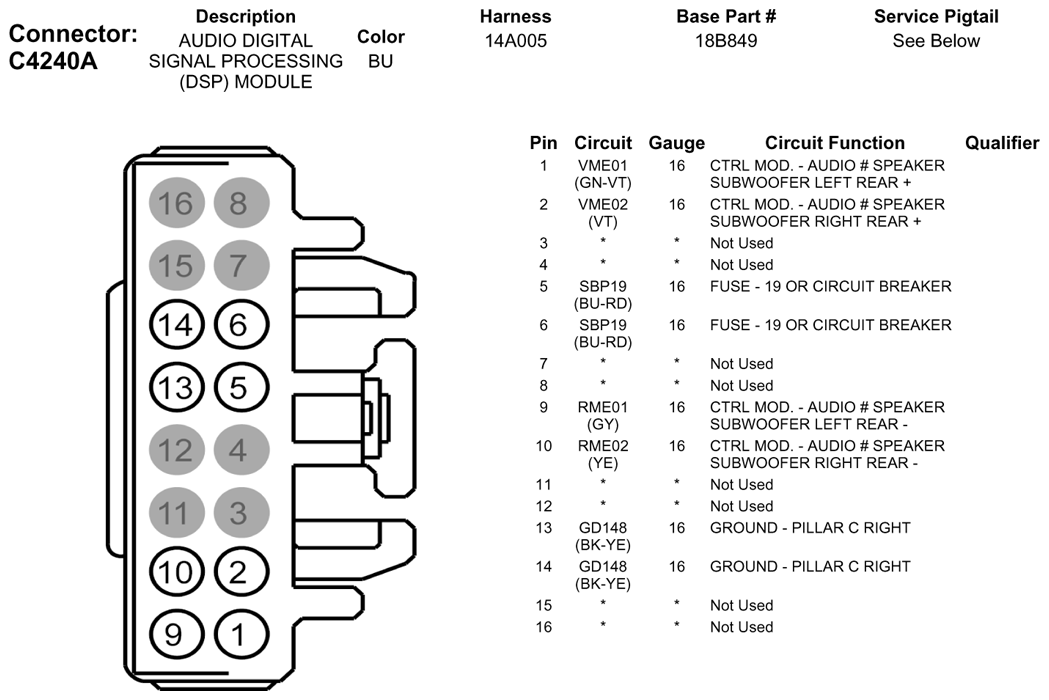

Fig 1: Connector End Views C4240A - Audio Digital Signal Processing (DSP) Module
G07923654Courtesy of FORD MOTOR CO.

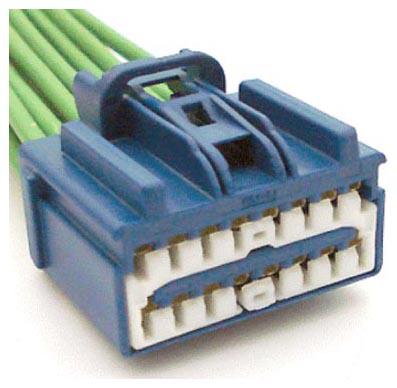

Available Pigtail Kits
Pigtail Kit Part Number WPT-959
G07923655
 Service Part Number: 3U2Z-14S411-BDAB
Gauge: 14
Pin material: Silver
Cavities: 16
Vehicle Uses
  • Radio - Amplifier
