Connector End Views C4240B - Audio Digital Signal Processing (DSP) Module

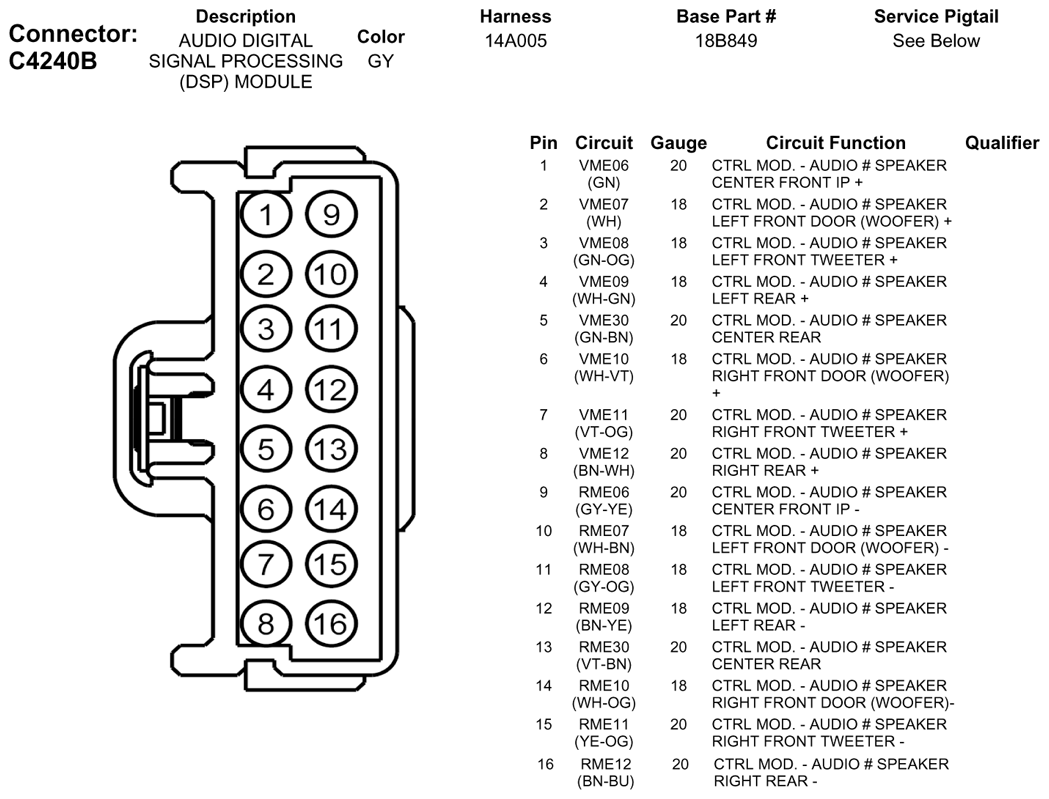

Fig 1: Connector End Views C4240B - Audio Digital Signal Processing (DSP) Module
G07923656Courtesy of FORD MOTOR CO.
Available Pigtail Kits

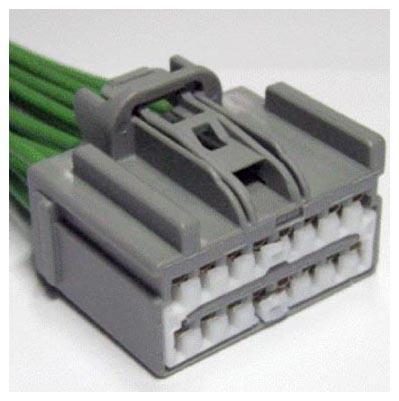

Pigtail Kit Part Number WPT-1145
G07923657
 Service Part Number: BU2Z-14S411-GA
Gauge: 18
Pin material: Silver
Cavities: 16
Vehicle Uses
  • Mirror - Rearview (electrochromatic)
  • Radio - Amplifier
