Connector End Views C310A - Restraints Control Module (RCM)

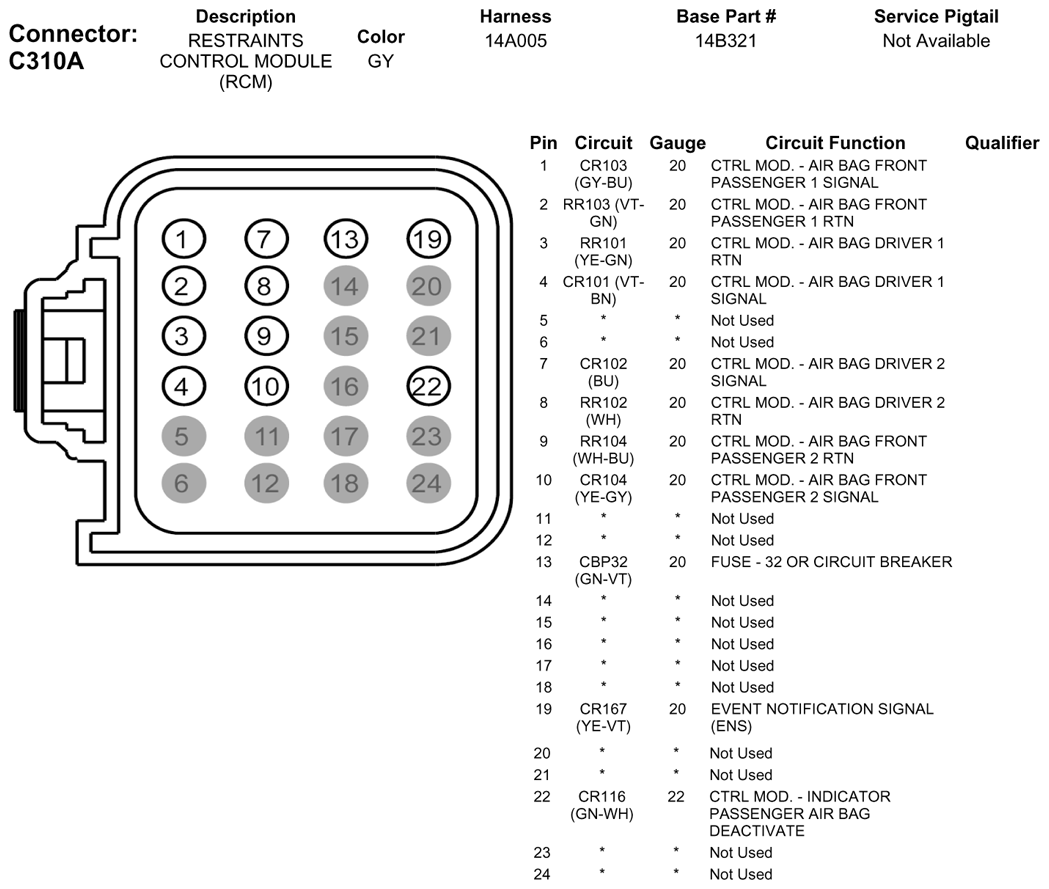

Fig 1: Connector End Views C310A - Restraints Control Module (RCM)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
