HVAC Module-DATC Connector End View (C228B)

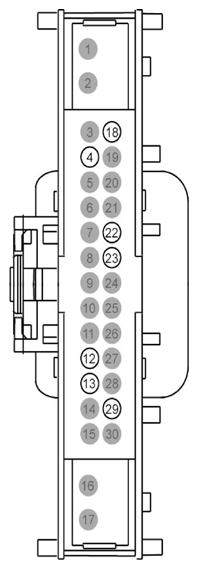

Fig 1: HVAC Module-Datc Connector End View (C228B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	VH441 (WH-BN)	22	SENSOR - DOOR POSITION TEMP. RIGHT
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	CH212 (BU-OG)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 1/CLOSE (IF PLUS)
13	CH213 (BN-GN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 2/OPEN (IF PLUS)
14	*	*	Not Used
15	*	*	Not Used
16	*	*	Not Used
17	*	*	Not Used
18	VH413 (WH-BU)	22	SENSOR - HUMIDITY
19	*	*	Not Used
20	*	*	Not Used
21	*	*	Not Used
22	VH417 (YE-OG)	22	SENSOR - SUN LOAD # RIGHT
23	VH416 (VT-GY)	22	SENSOR - SUN LOAD # LEFT
24	*	*	Not Used
25	*	*	Not Used
26	*	*	Not Used
27	*	*	Not Used
28	*	*	Not Used
29	VH414 (GN-BU)	22	SENSOR - INCAR TEMP.
30	*	*	Not Used
