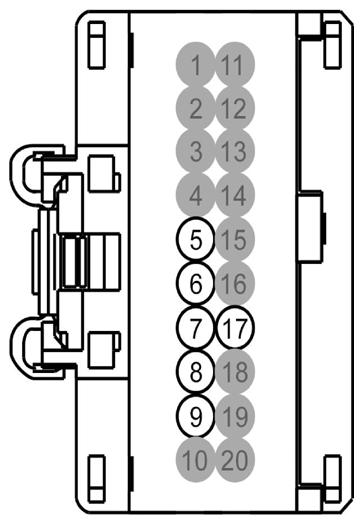

| 1 |
* |
* |
Not Used |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
VLN50 (YE-BU) |
22 |
CTRL MOD. - AMBIENT LIGHTING ZONE 2 # LED BLUE |
|
| 6 |
VLN49 (YE-GN) |
22 |
CTRL MOD. - AMBIENT LIGHTING ZONE 2 # LED GREEN |
|
| 7 |
VLN48 (YE-OG) |
22 |
CTRL MOD. - AMBIENT LIGHTING ZONE 2 # LED RED |
|
| 8 |
GD374 (BK-WH) |
22 |
GROUND - TUNNEL (BC3T) |
|
| 9 |
VLN58 (GY-OG) |
22 |
CTRL MOD. - AMBIENT LIGHTING ZONE 2 # LED WHITE OR SIGNATURE |
|
| 10 |
* |
* |
Not Used |
|
| 11 |
* |
* |
Not Used |
|
| 12 |
* |
* |
Not Used |
|
| 13 |
* |
* |
Not Used |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
* |
* |
Not Used |
|
| 17 |
RLN44 (BN) |
22 |
CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED - |
|
| 18 |
* |
* |
Not Used |
|
| 19 |
* |
* |
Not Used |
|
| 20 |
* |
* |
Not Used |
|
